B7530 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

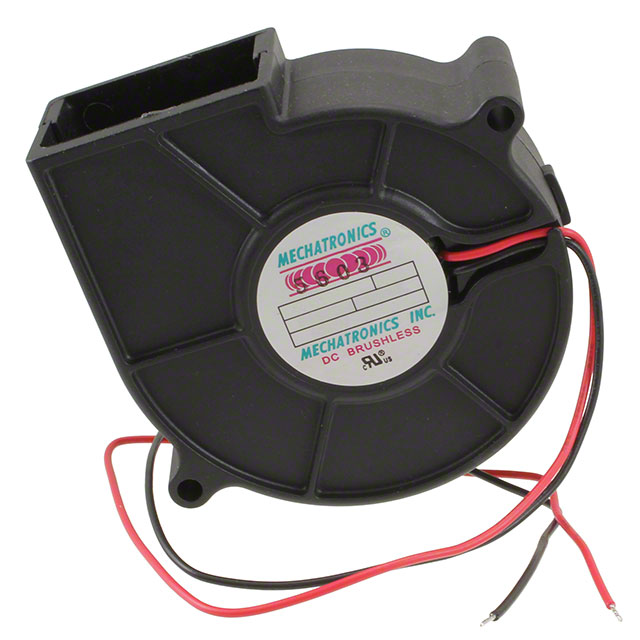

FAN BLOWER 76X30MM 24VDC WIRE
| Part | Material - Blade | Air Flow | Air Flow | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Width [y] | Fan Type | Weight | Weight | Voltage - Rated | Bearing Type | Noise | Features | RPM | Termination | Approval Agency | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | 0.378 m³/min | 13.5 CFM | 0.3 A | 76 mm | 76 mm | Square/Rounded | 30 mm | Blower | 87.08 g | 0.192 lb | 24 VDC | Ball | 45 dB(A) | Thermal Overload Protector (TOP) | 3800 RPM | 2 Wire Leads | CE cUL UL | 176.9 Pa | 0.71 in H2O |
