3124-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

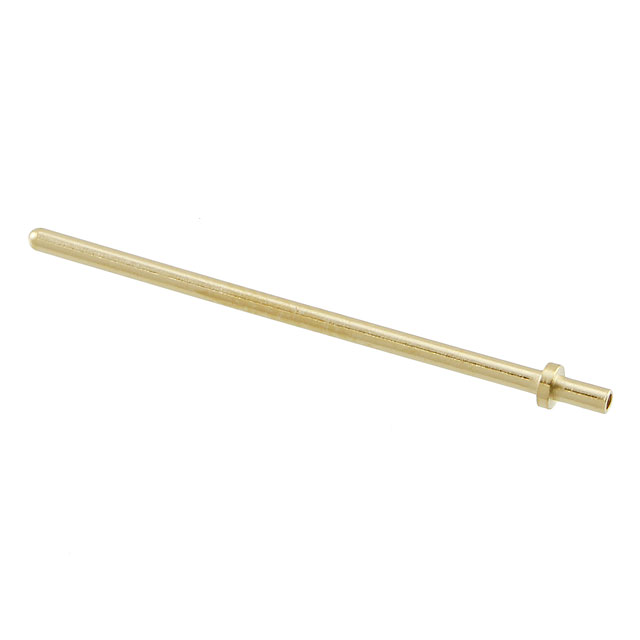

CONN PC PIN CIRC .040DIA TINLEAD
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Material | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Terminal Style | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Termination | Terminal Type | Board Thickness | Board Thickness | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | 24.94 mm | 0.982 in | Brass Alloy | Non-Insulated | 2.08 mm | 0.082 " | Through Hole | Single End | Tin-Lead | 0.04 in | 1.02 mm | Swage | PC Pin | 1.57 mm | 0.062 " | 200 Áin | 5.08 Ám | 22.35 mm | 0.88 in |
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | 1.77 mm | 0.07 in | 24.94 mm | 0.982 in | Brass Alloy | Non-Insulated | 2.08 mm | 0.082 " | Through Hole | Single End | Gold | 0.04 in | 1.02 mm | Swage | PC Pin | 1.57 mm | 0.062 " | 10 Áin | 0.25 Ám | 22.35 mm | 0.88 in |
Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | 1.78 mm | 0.07 in | 24.94 mm | 0.982 in | Brass Alloy | Non-Insulated | 2.08 mm | 0.082 " | Through Hole | Single End | Tin | 0.04 in | 1.02 mm | Swage | PC Pin | 1.57 mm | 0.062 " | 200 Áin | 5.08 Ám | 22.35 mm | 0.88 in |
