2390869 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

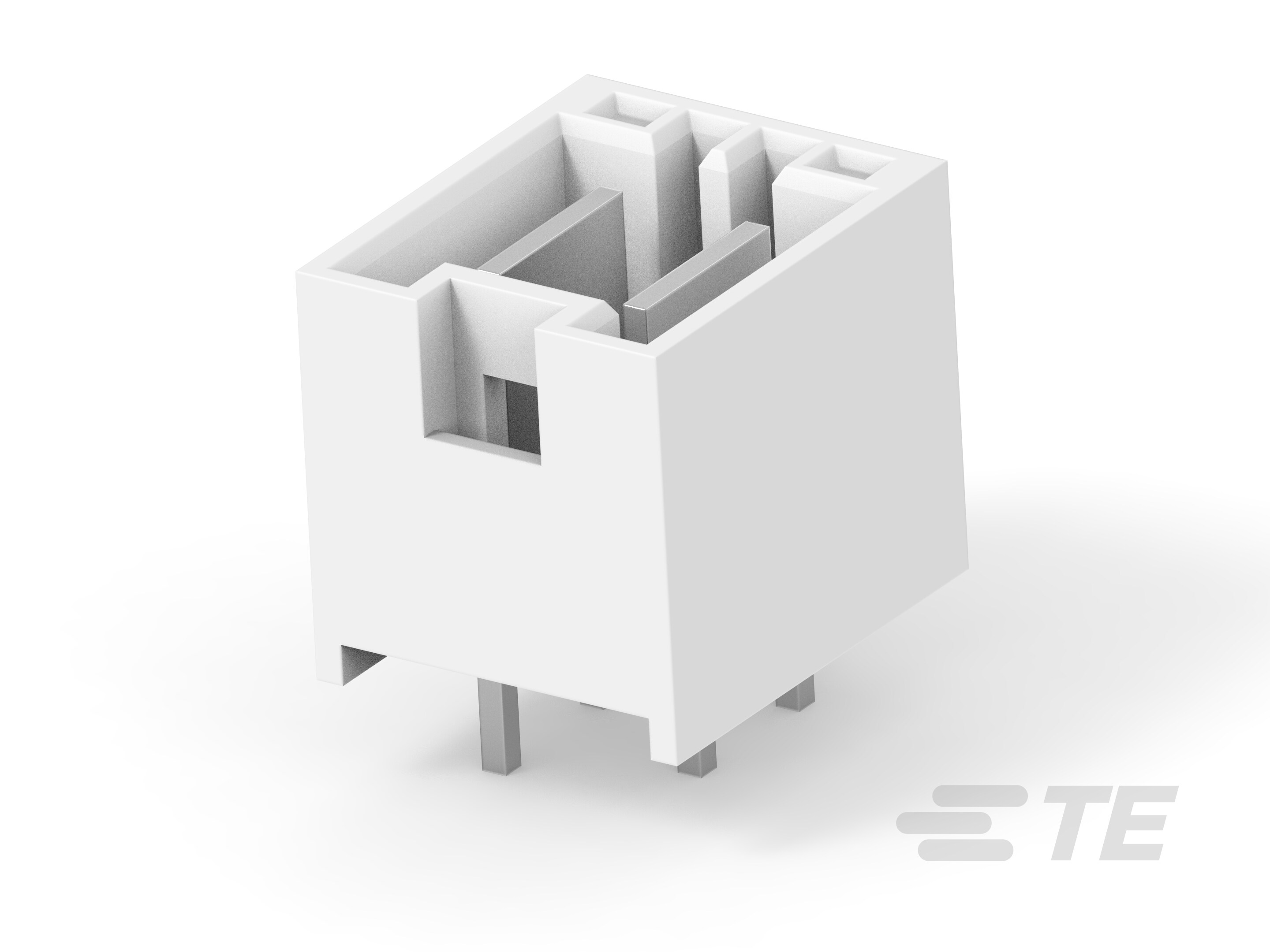

2P RAST 5 SHROUDED HEADER OPP PL
| Part | Contact Type | Insulation Material | Fastening Type | Number of Rows | Contact Material | Material Flammability Rating | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Style | Contact Finish - Post | Number of Positions Loaded | Number of Positions | Mounting Type | Features | Current Rating (Amps) | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tab | Nylon Polyamide (PA) | Detent Lock | 1 | Copper Alloy | UL94 V-0 | Solder | 2 çm | 78.7 çin | 250 VAC | Shrouded - 4 Wall | -40 °C | 120 °C | 78.7 µin | 2 µm | Header | Board to Cable/Wire | Tin | All | 2 | Through Hole | Board Guide Glow Wire Compliant | 20 A | Natural | 5 mm | 0.197 " | 3.5 mm | 0.138 in | 12.8 mm | 0.504 in | Rectangular |
