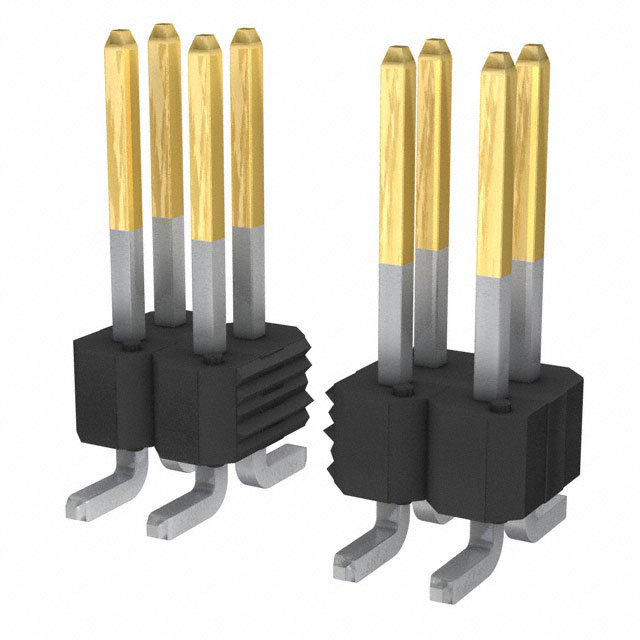

95159 Series

Catalog

CONN HEADER SMD 14POS 2.54MM

Part	Mounting Type	Insulation Color	Contact Finish - Post	Contact Type	Contact Shape	Number of Positions Loaded	Termination	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Fastening Type	Number of Positions	Shrouding	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Material	Features
Amphenol ICC (FCI) 95159-214	Surface Mount	Black	Tin	Male Pin	Square	All	Solder	Gold	0.318 "	8.08 mm	Push-Pull	14	Unshrouded	2	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	2.54 mm	0.1 in	Header	Phosphor Bronze
Amphenol ICC (FCI) 95159-214VLF	Surface Mount	Black	Tin	Male Pin	Square	All	Solder	Gold	0.318 "	8.08 mm	Push-Pull	14	Unshrouded	2	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	2.54 mm	0.1 in	Breakaway Header	Phosphor Bronze	Pick and Place
Amphenol ICC (FCI) 95159-210	Surface Mount	Black	Tin	Male Pin	Square	All	Solder	Gold	0.318 "	8.08 mm	Push-Pull	10	Unshrouded	2	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	2.54 mm	0.1 in	Header	Phosphor Bronze
Amphenol ICC (FCI) 95159-234	Surface Mount	Black	Tin	Male Pin	Square	All	Solder	Gold	0.318 "	8.08 mm	Push-Pull	34	Unshrouded	2	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	2.54 mm	0.1 in	Header	Phosphor Bronze
Amphenol ICC (FCI) 95159-114LF	Surface Mount	Black	Tin	Male Pin	Square	All	Solder	Gold	0.318 "	8.08 mm	Push-Pull	14	Unshrouded	2	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	30 Áin	0.76 Ám	2.54 mm	0.1 in	Breakaway Header	Phosphor Bronze
Amphenol ICC (FCI) 95159-210VLF	Surface Mount	Black	Tin	Male Pin	Square	All	Solder	Gold	0.318 "	8.08 mm	Push-Pull	10	Unshrouded	2	UL94 V-0	0.1 in	2.54 mm	0.1 in	2.54 mm	15 µin	0.38 µm	2.54 mm	0.1 in	Breakaway Header	Phosphor Bronze	Pick and Place
