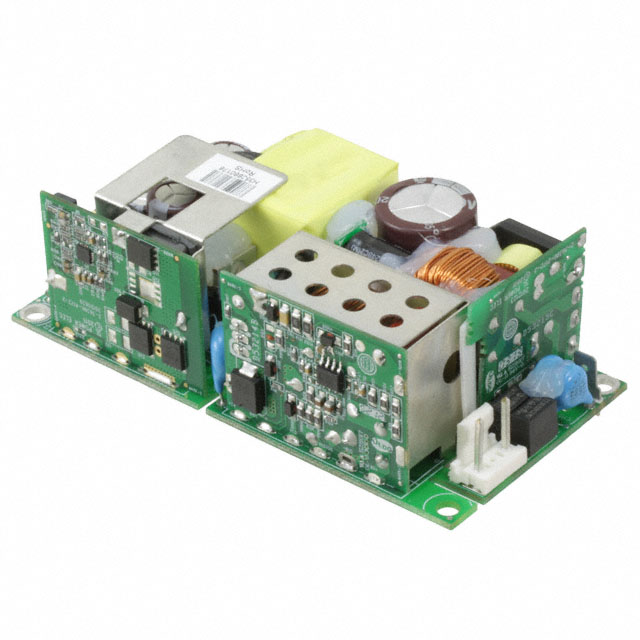

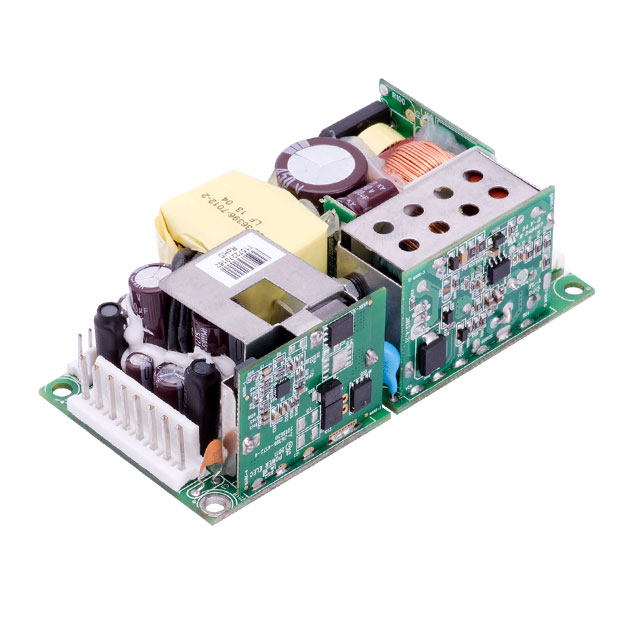

MINT3110 Series

Catalog

AC/DC CONVERTER 5V +/-15V 80W

Part	Voltage - Output 1	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output 3	Applications	Current - Output 2	Features	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Current - Output 1	Efficiency	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Type
SL POWER / Advanced Energy MINT3110A1708K01	5 V	3	80 W 110 W	70 °C	-10 °C	Chassis Mount	-15 V	Medical	3.5 A	Adjustable Output DC Input Capable Universal Input	264 VAC	90 VAC	CE	10 A	87 %	15 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Open Frame
SL POWER / Advanced Energy MINT3110A0508K01	5 V	3	80 W 110 W	70 °C	-10 °C	Chassis Mount	-12 V	Medical	4.5 A	Adjustable Output DC Input Capable Universal Input	264 VAC	90 VAC	CE	10 A	87 %	12 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Open Frame
SL POWER / Advanced Energy MINT3110A1908K01	5 V	3	80 W 110 W	70 °C	-10 °C	Chassis Mount	-24 V	Medical	3 A	Adjustable Output DC Input Capable Universal Input	264 VAC	90 VAC	CE	8 A	87 %	24 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	4000 V	Open Frame
