19200030 Series

Manufacturer: HARTING

Catalog

3A GRAY PLASTIC HOOD TOP ENTRY, W/ GLAND 7 12MM

Part	Connector Type	Lock Location	Housing Material	Size	Ingress Protection	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
HARTING 19200030415	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Top Entry	125 °C	-40 C	Gray
HARTING 19200030420	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Top Entry	125 °C	-40 C	Gray	M20	1.043 in	26.5 mm	26.5 mm	2.362 in	60 mm	1.043 in

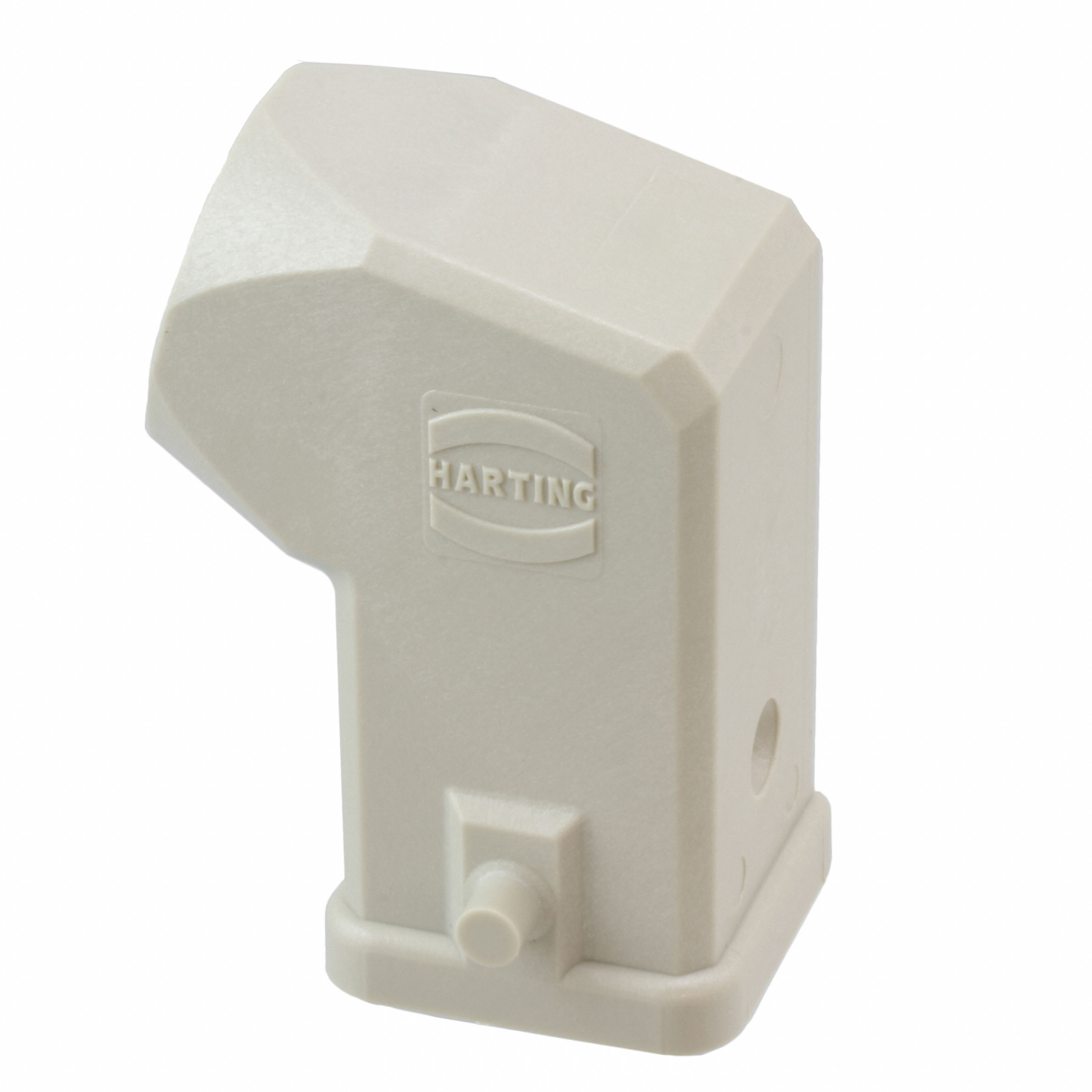

HARTING 19200030620	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Side Entry	125 °C	-40 C	Gray	M20	1.043 in	26.5 mm	26.5 mm	2.15 in	54.6 mm	1.043 in
HARTING 19200030414
HARTING 19200030426	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Top Entry	125 °C	-40 C	Black	M20	1.043 in	26.5 mm	26.5 mm	2.362 in	60 mm	1.043 in
HARTING 19200030437	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Top Entry	125 °C	-40 C	Black	M25

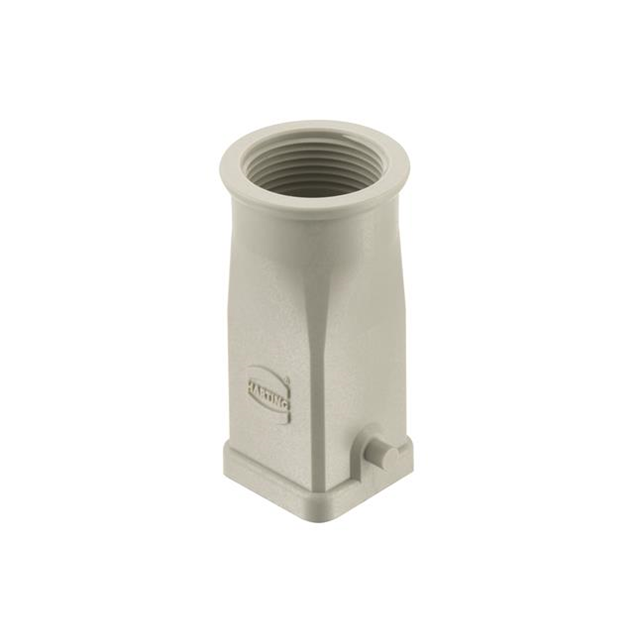

HARTING 19200030433	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Top Entry	125 °C	-40 C	Gray	M25

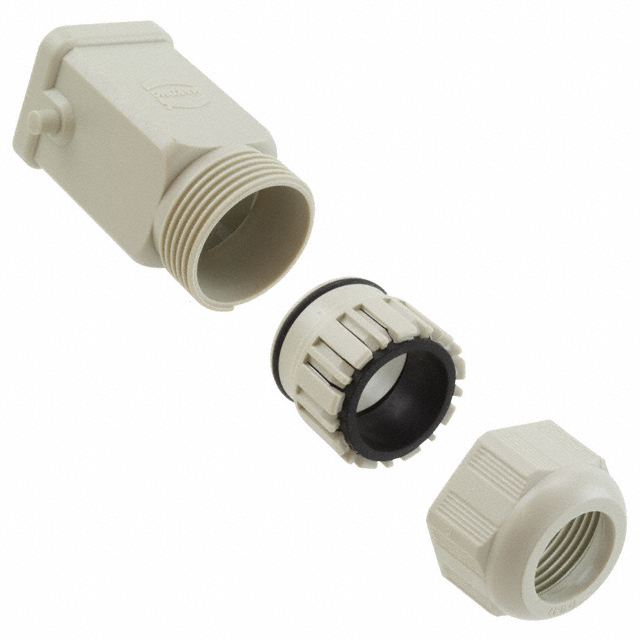

HARTING 19200030410	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Top Entry	125 °C	-40 C	Gray		26.6 mm	1.047 in	1.047 in	65 mm	2.559 in	26.6 mm
HARTING 19200030419

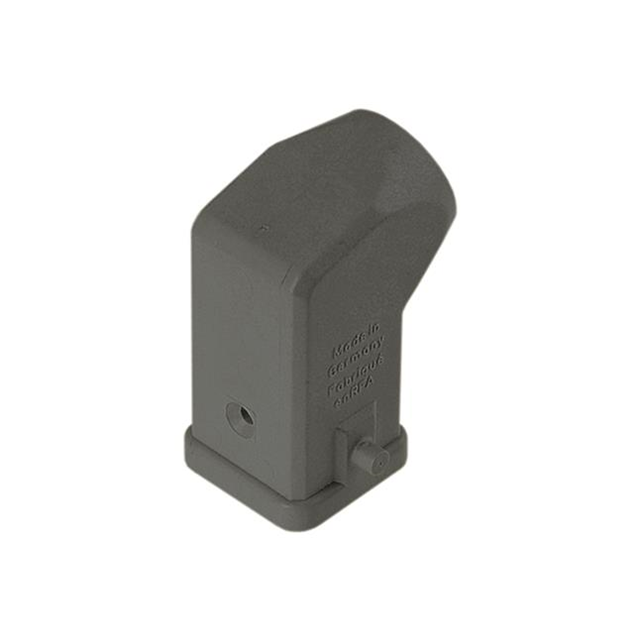

HARTING 19200030626	Hood	Locking Clip (1) on Base Bottom	Polycarbonate (PC)	3 A	IP44	Side Entry	125 °C	-40 C	Black	M20	1.043 in	26.5 mm	26.5 mm	2.15 in	54.6 mm	1.043 in
