R19138 Series

Catalog

SMA FEMALE-MMBX MALE STRAIGHT AD

Part	Body Material	Dielectric Material	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Mating Cycles	Adapter Type	Impedance	Conversion Type	Convert From (Adapter End)	Mounting Type	Adapter Series	Convert To (Adapter End)	Style	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Center Gender	Center Contact Finish	Color	For Use With/Related Products	Connector Style	Mounting Feature

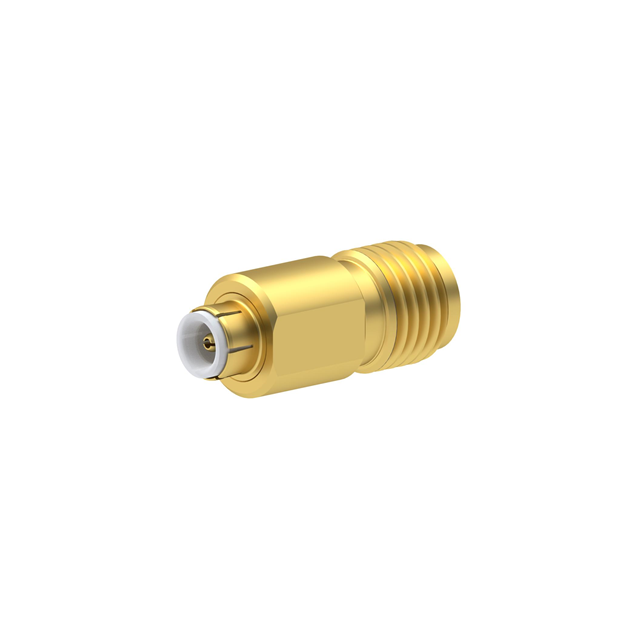

Radiall USA, Inc. R191389200	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	155 C	-55 C	Beryllium Copper	500	Plug to Jack	50 Ohms	Between Series	Female Socket SMA Jack	Free Hanging (In-Line)	SMA to MMBX	MMBX Plug Male Pin	Straight	Gold	Snap-On Threaded	12.4 GHz

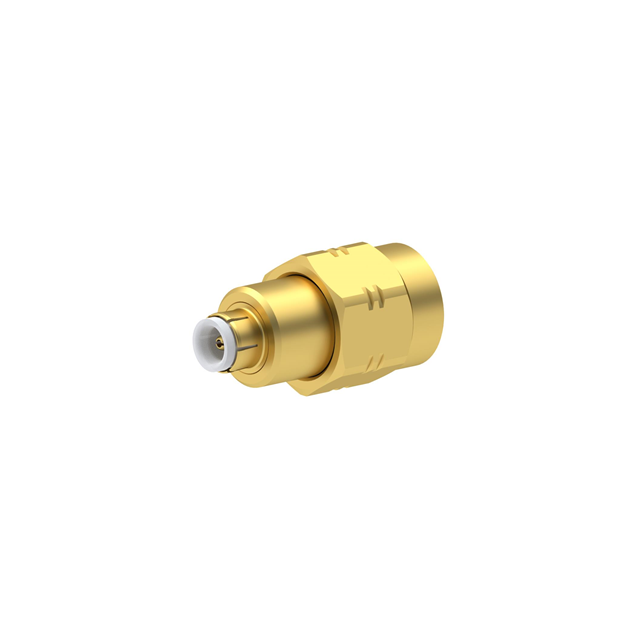

Radiall USA, Inc. R191389100	Brass	Polytetrafluoroethylene (PTFE)	Gold	155 C	-55 C	Beryllium Copper	500	Plug to Plug	50 Ohms	Between Series	Male Pin SMA Plug	Free Hanging (In-Line)	SMA to MMBX	MMBX Plug Male Pin	Straight	Gold	Snap-On Threaded	12.4 GHz	Male to Male

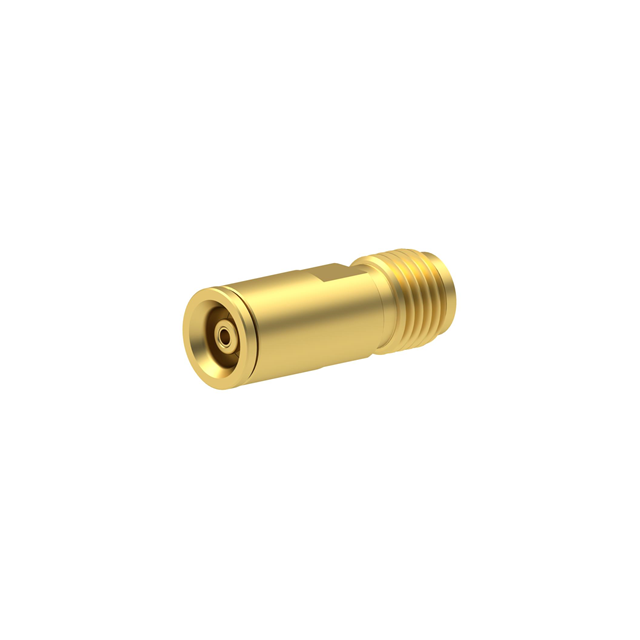

Radiall USA, Inc. R191389400	Brass	Liquid Crystal Polymer Polytetrafluoroethylene	Gold	155 C	-55 C	Beryllium Copper	500	Jack to Jack	50 Ohms	Between Series	Female Socket SMA Jack	Free Hanging (In-Line)	SMA to MMBX	MMBX Jack Female Socket	Straight	Gold	Snap-On Threaded	12.4 GHz	Female to Female

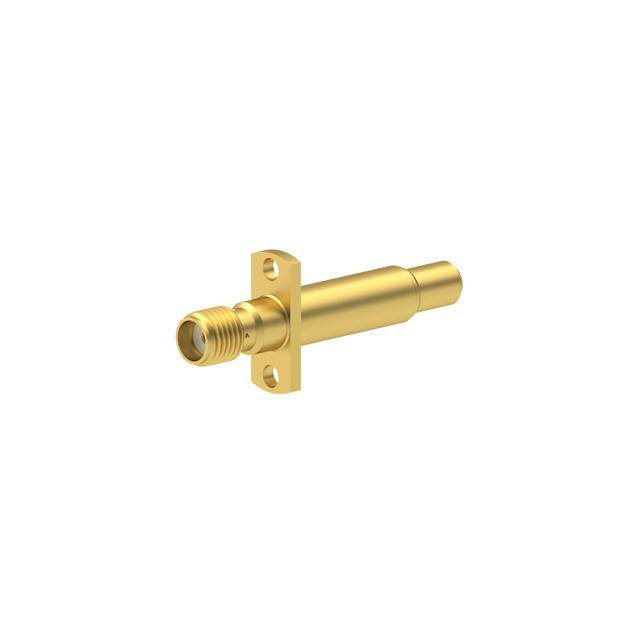

Radiall USA, Inc. R191389800	Brass		Gold			Beryllium Copper Brass														Gold	Gold	MMBX Jacks	SMA

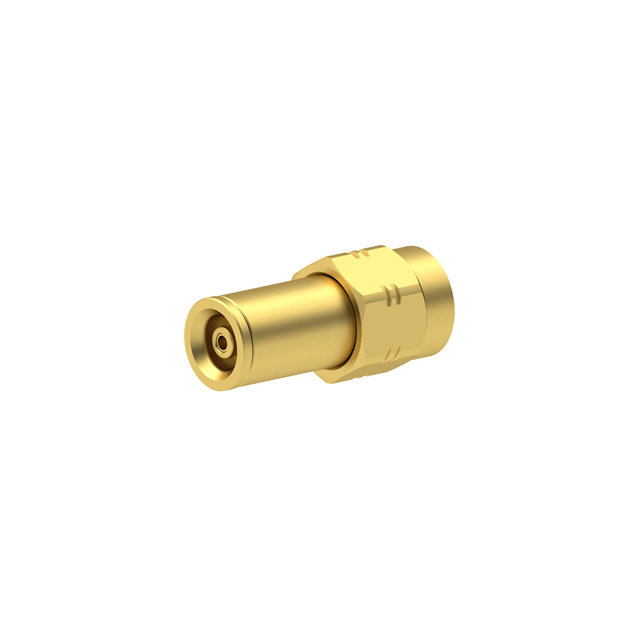

Radiall USA, Inc. R191389300	Brass	Liquid Crystal Polymer Polytetrafluoroethylene	Gold	155 C	-55 C	Beryllium Copper	500	Plug to Jack	50 Ohms	Between Series	Male Pin SMA Plug	Free Hanging (In-Line)	SMA to MMBX	MMBX Jack Female Socket	Straight	Gold	Snap-On Threaded	12.4 GHz

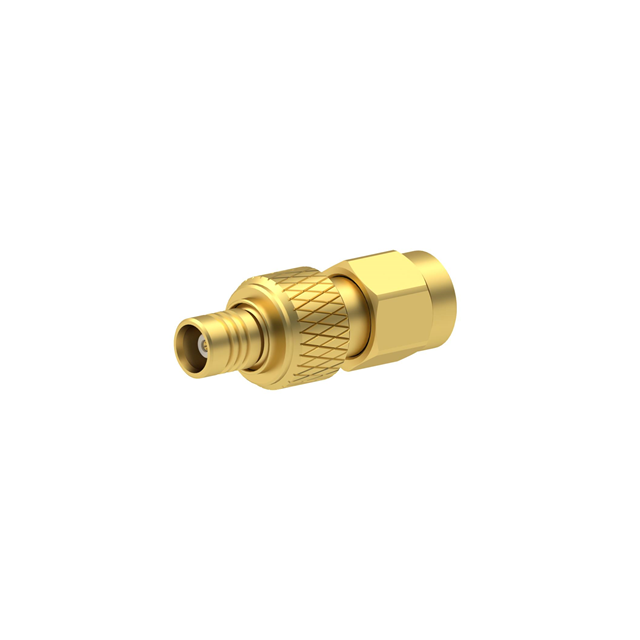

Radiall USA, Inc. R191386000	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	155 C	-55 C	Beryllium Copper	500	Plug to Jack	50 Ohms	Between Series	Male Pin SMA Plug	Free Hanging (In-Line)	SMA to MCX	Female Socket MCX Jack	Straight	Gold	Snap-On Threaded	6000 MHz
Radiall USA, Inc. R191381000	Brass	Polytetrafluoroethylene (PTFE)	Nickel	155 C	-55 C	Beryllium Copper	500	Jack to Jack	50 Ohms	Between Series	Female Socket N Jack	Panel Mount		SMA Jack Female Socket	Straight	Nickel		11 GHz	Female to Female					Bulkhead
