SKN.M0 Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 8P GOLD SLDR CUP
| Part | Applications | Shell Size - Insert | Number of Positions | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Feature | Fastening Type | Orientation | Shell Material | Mounting Type | Primary Material | Shielding | Ingress Protection | Insert Material | Current Rating (Amps) | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

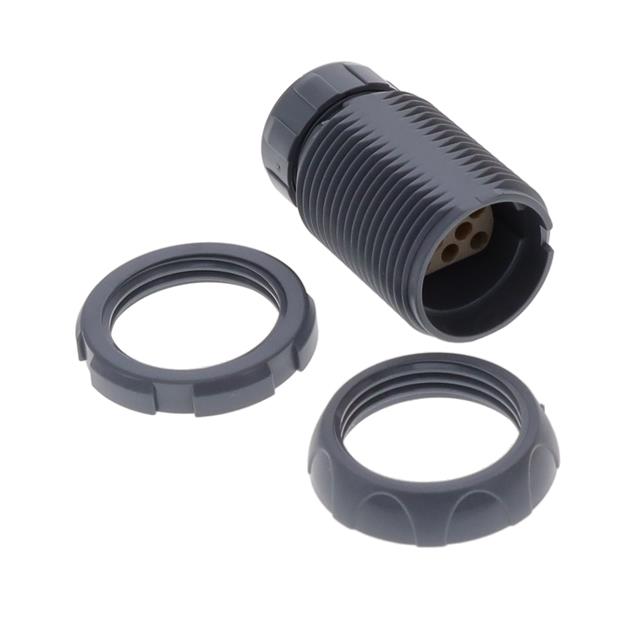

 LEMO | Automotive Industrial Medical Testing Equipment & Measurement | M08 | 8 | Gold | 170 °C | -50 °C | Gray | Front and Rear Side Nut | Push-Pull | N (Normal) | Sulfone | Panel Mount | Plastic | Unshielded | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 5 A | Receptacle Female Sockets | |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | M06 | 6 | Gold | 170 °C | -50 °C | Gray | Front and Rear Side Nut | Push-Pull | N (Normal) | Sulfone | Panel Mount | Plastic | Unshielded | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 8.5 A | Receptacle Female Sockets | |

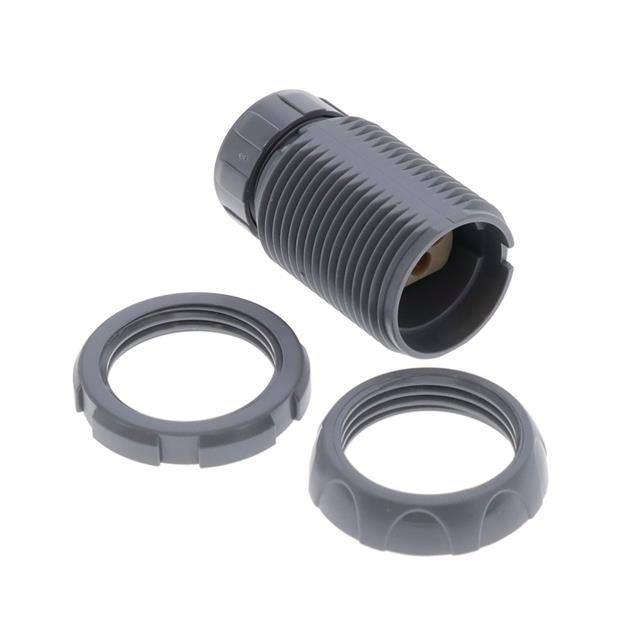

 LEMO | Automotive Industrial Medical Testing Equipment & Measurement | M04 | 4 | Gold | 170 °C | -50 °C | Gray | Front and Rear Side Nut | Push-Pull | N (Normal) | Sulfone | Panel Mount | Plastic | Unshielded | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 11.5 A | Receptacle Female Sockets | |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | M08 | 8 | Gold | 170 °C | -50 °C | Blue Gray | Front and Rear Side Nut | Push-Pull | N (Normal) | Sulfone | Panel Mount | Plastic | Unshielded | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 5 A | Receptacle Female Sockets | |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | M08 | 8 | Gold | 170 °C | -50 °C | Gray | Front and Rear Side Nut | Push-Pull | N (Normal) | Sulfone | Panel Mount Right Angle Through Hole | Plastic | Unshielded | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 5 A | Receptacle Female Sockets | Solder |
LEMO | Automotive Industrial Medical Testing Equipment & Measurement | M04 | 4 | Gold | 170 °C | -50 °C | White | Front and Rear Side Nut | Push-Pull | N (Normal) | Sulfone | Panel Mount | Plastic | Unshielded | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 11.5 A | Receptacle Female Sockets |
