M22-190 Series
Manufacturer: Harwin Inc.
Beta
⌘K

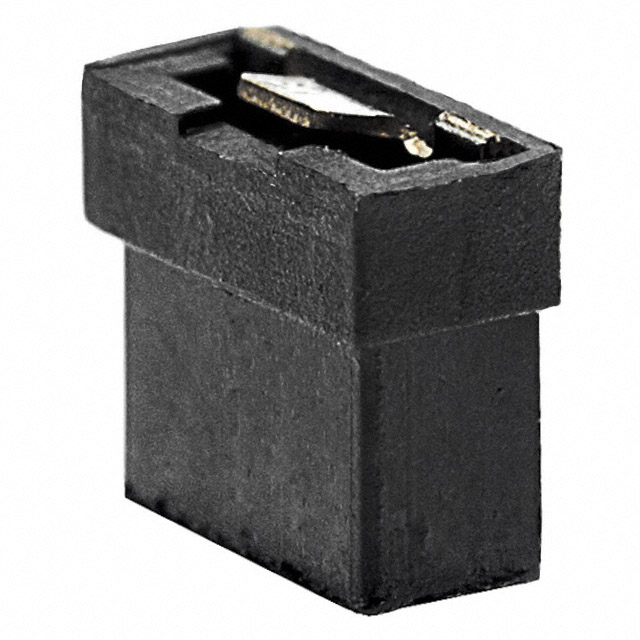

JUMPER SOCKET, 2POS, PIN HEADER
| Part | Voltage Rating | Color | Gender | Height | Height | Type | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Current Rating (Amps) | Contact Finish | Pitch [x] | Pitch [x] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 250 V | Black | Female Sockets | 3.5 mm | 0.138 in | Open Top | 1 x 2 | 2 | 3 µm | 118.1 µin | Polyester Glass Filled | 2 A | Tin | 0.079 in | 2 mm | UL94 V-0 |
 Harwin Inc. | 250 V | Black | Female Sockets | 3.5 mm | 0.138 in | Open Top | 1 x 2 | 2 | 0.13 µm | 5.11 µin | Polyester Glass Filled | 2 A | Gold | 0.079 in | 2 mm | UL94 V-0 |
