845-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 24POS 0.100

...

Part	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Color	Card Type	Contact Material	Material - Insulation	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flange Feature	Contact Finish	Number of Positions/Bay/Row [custom]	Termination	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Number of Rows	Read Out	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature	Features

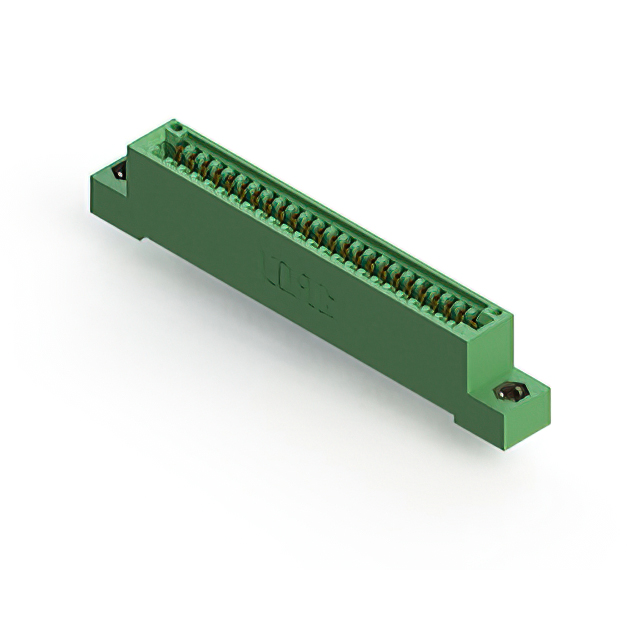

EDAC Inc. 845-024-542-108	10 Áin	0.25 Ám	1	Green	Non Specified - Single Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	4-40 Flush Mount Threaded Insert Top Opening	Gold	24	Wire Wrap	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	1	Single	Female

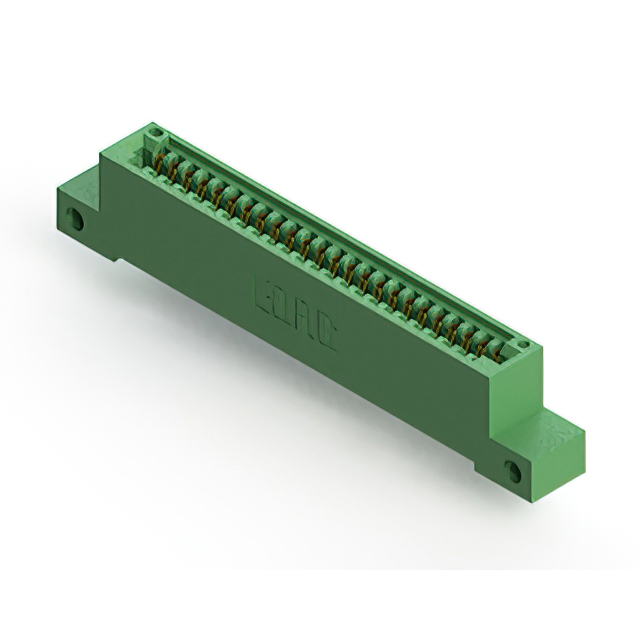

EDAC Inc. 845-024-500-112	10 Áin	0.25 Ám	1	Green	Non Specified - Single Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	Flush Mount Side Opening Unthreaded	Gold	24	Solder Eyelet(s)	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	1	Single	Female	3.25 mm	0.128 "

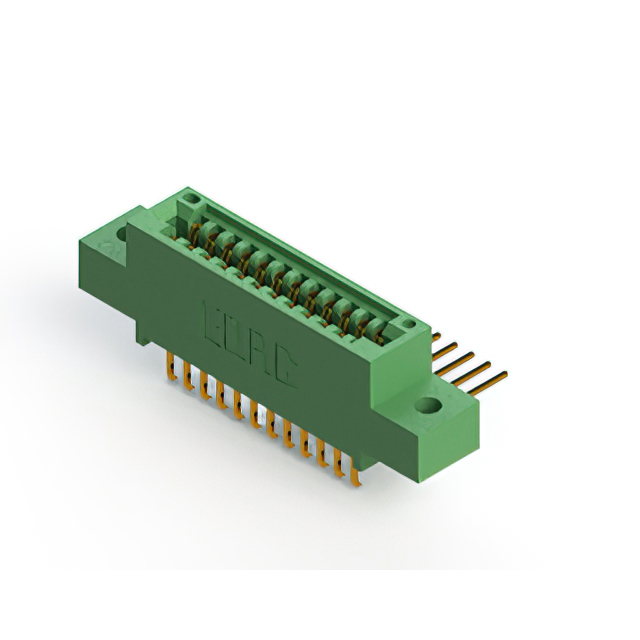

EDAC Inc. 845-024-559-502	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24		Gold	12	Solder	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female			3.25 mm	0.128 in

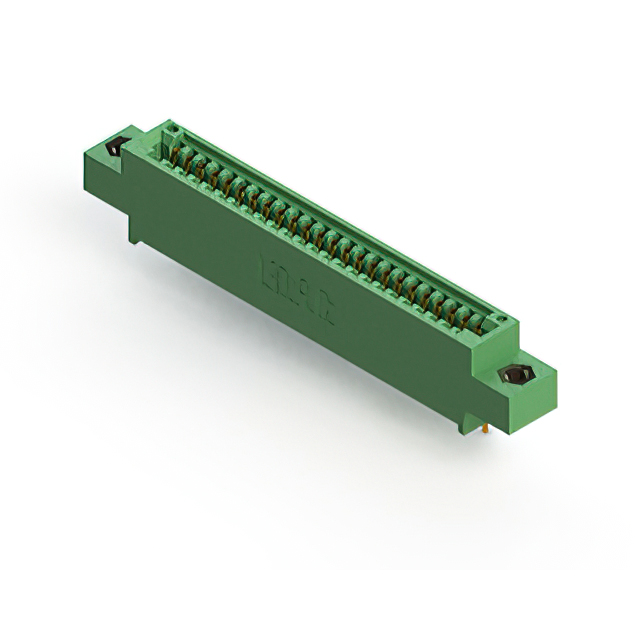

EDAC Inc. 845-024-540-607	10 Áin	0.25 Ám	1	Green	Non Specified - Single Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	M3 Threaded Insert Top Mount Opening	Gold	24	Wire Wrap	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	1	Single	Female

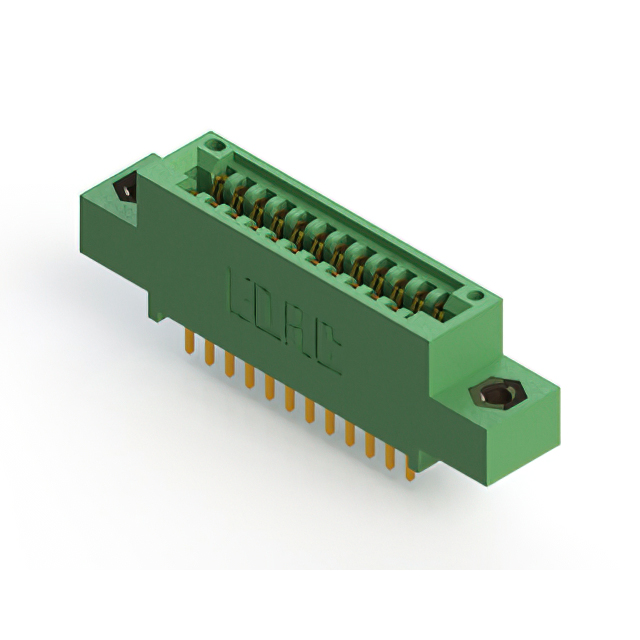

EDAC Inc. 845-024-521-507	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	M3 Threaded Insert Top Mount Opening	Gold	12	Solder	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female

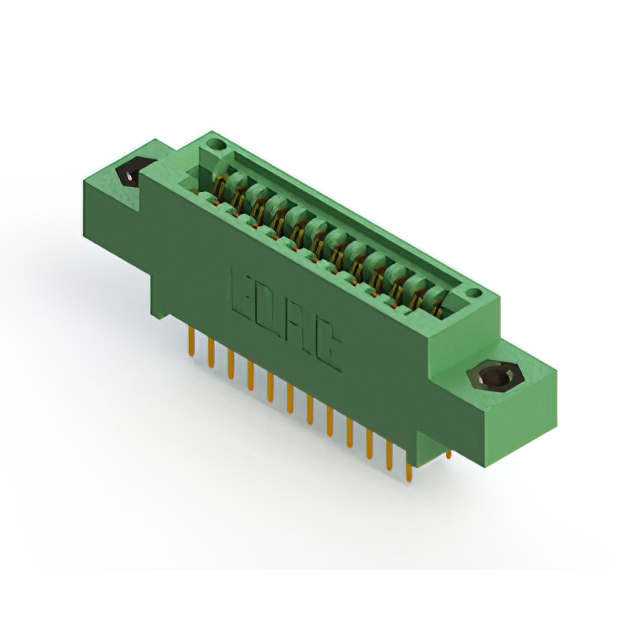

EDAC Inc. 845-024-524-807	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	M3 Threaded Insert Top Mount Opening	Gold	12	Solder	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female

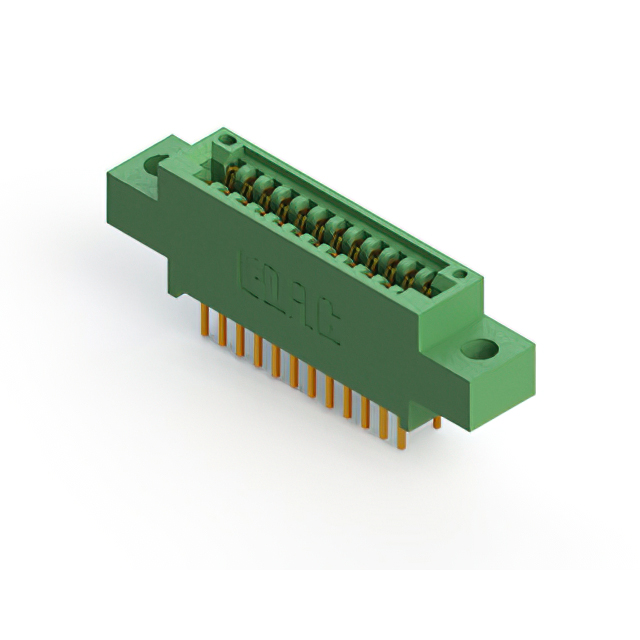

EDAC Inc. 845-024-523-804	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	Top Mount Opening Unthreaded	Gold	12	Solder	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female	3.96 mm	0.156 in

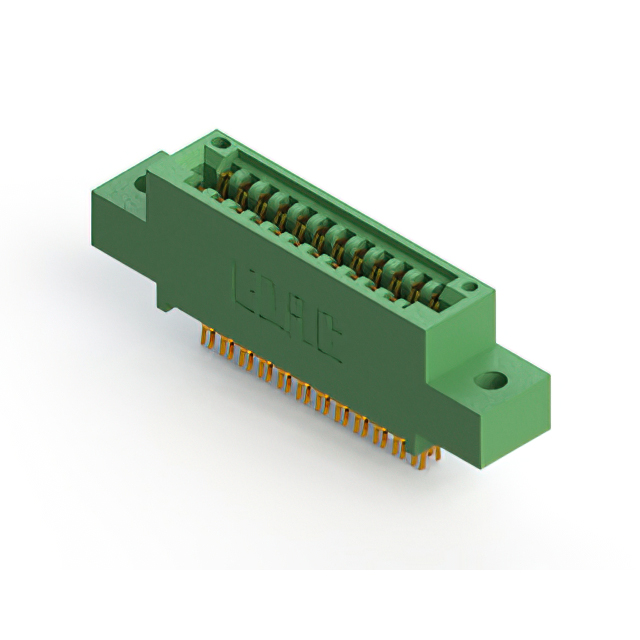

EDAC Inc. 845-024-555-502	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24		Gold	12	Solder	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female			3.25 mm	0.128 in	Card Extender

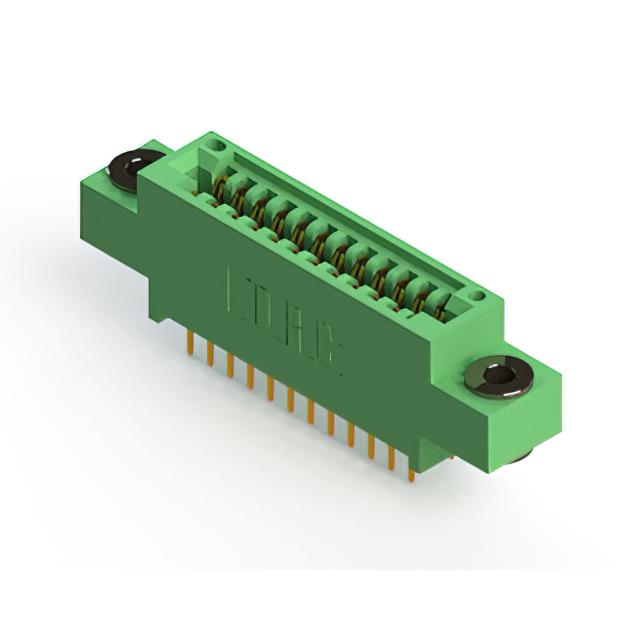

EDAC Inc. 845-024-525-803	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	Floating Bobbin Top Mount Opening	Gold	12	Solder	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female	2.95 mm	0.116 in

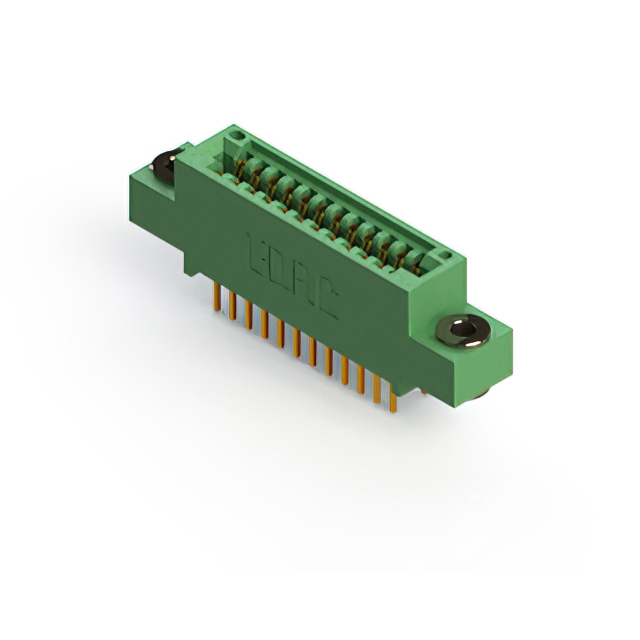

EDAC Inc. 845-024-542-503	10 Áin	0.25 Ám	2	Green	Non Specified - Dual Edge	Copper Alloy	Diallyl Phthalate (DAP)	2.54 mm	0.1 in	125 °C	-40 °C	24	Floating Bobbin Top Mount Opening	Gold	12	Wire Wrap	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	2	Dual	Female	2.95 mm	0.116 in
