M2441 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

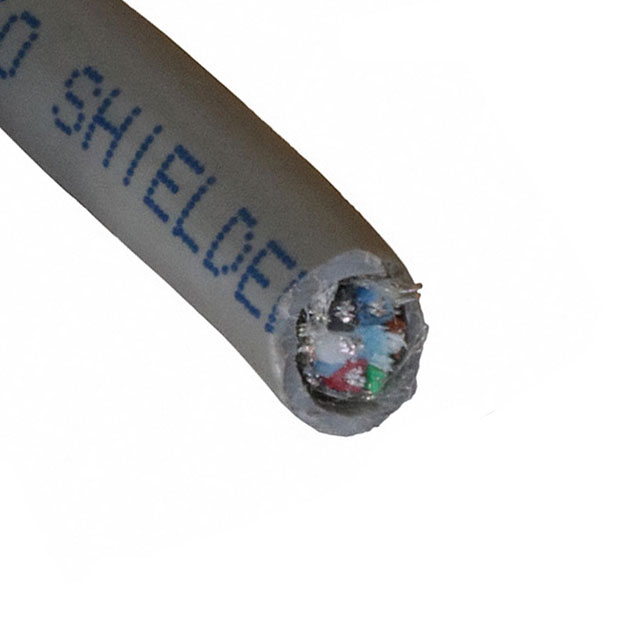

CABLE 6COND 24AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Shield Type | Features | Conductor Insulation | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket Color | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Material | Cable Type | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 0.813 mm | 0.032 in | Copper Tinned | Slate | 6 | 80 °C | -20 ░C | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 300 VDC | 7 | 32 AWG | UL Style 2464 | 0.223 " | 5.66 mm | ||
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Braid Foil | Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | Copper Tinned | Slate | 6 | 80 °C | -20 ░C | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 300 VDC | 7 | 32 AWG | UL Style 2464 | 0.223 " | 5.66 mm | 100 ft | 30.5 m |
