RB242C1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER DPST 16A 125V
| Part | Electrical Life | Color - Actuator/Cap | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Switch Function | Mounting Type | Actuator Marking | Voltage Rating - AC | Circuit | Current Rating (Amps) | Actuator Type | Illumination Type, Color | Illumination Voltage (Nominal) | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | Black | 30 mm | 22 mm | Quick Connect - 0.250" (6.3mm) | On-Off | Panel Mount Snap-In | O - | 125 V | DPST | 16 A | Concave (Curved) | ||||
E-Switch | 10000 Cycles | Black | 30 mm | 22 mm | Quick Connect - 0.250" (6.3mm) | On-Off | Panel Mount Snap-In | No Marking | 125 V | DPST | 16 A | Concave (Curved) - Illuminated | Blue Incandescent | 12 VDC | ||

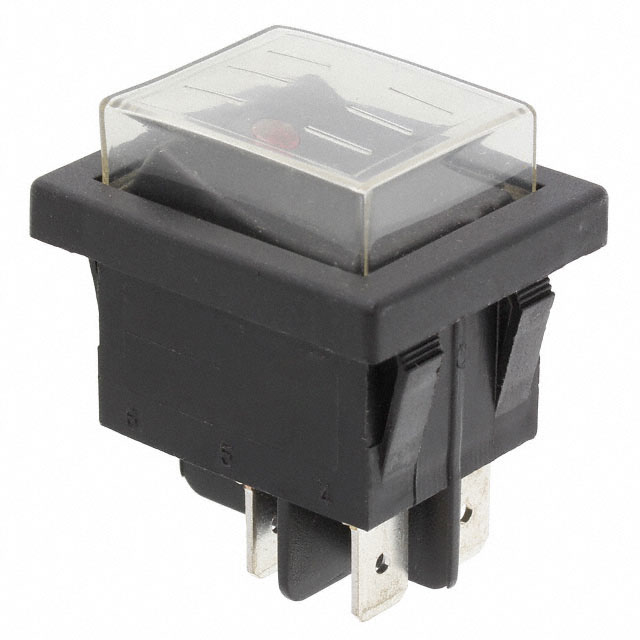

 E-Switch | 10000 Cycles | Black | 30 mm | 22 mm | Quick Connect - 0.250" (6.3mm) | On-Off | Panel Mount Snap-In | No Marking | 125 V | DPST | 16 A | Concave (Curved) - Illuminated | Neon Red | 125 VAC | Sealing Boot | IP54 - Dust Protected Water Resistant |
E-Switch | 10000 Cycles | Amber | 30 mm | 22 mm | Quick Connect - 0.250" (6.3mm) | On-Off | Panel Mount Snap-In | O - | 125 V | DPST | 16 A | Concave (Curved) - Illuminated | Neon Amber | 250 VAC |
