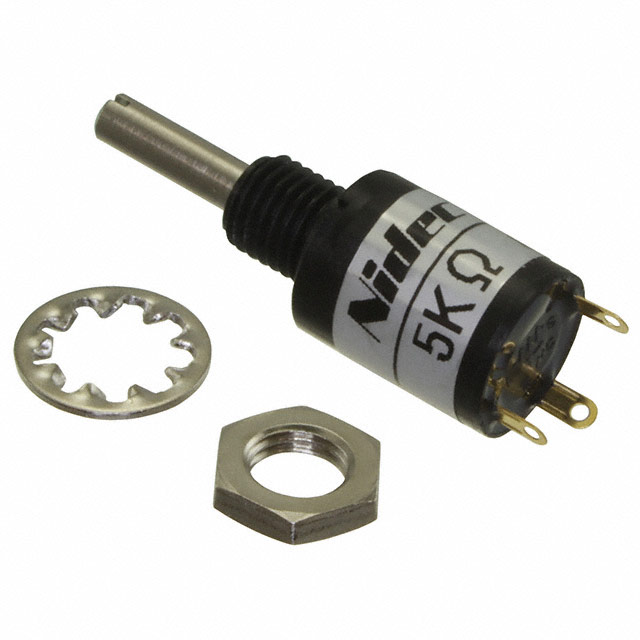

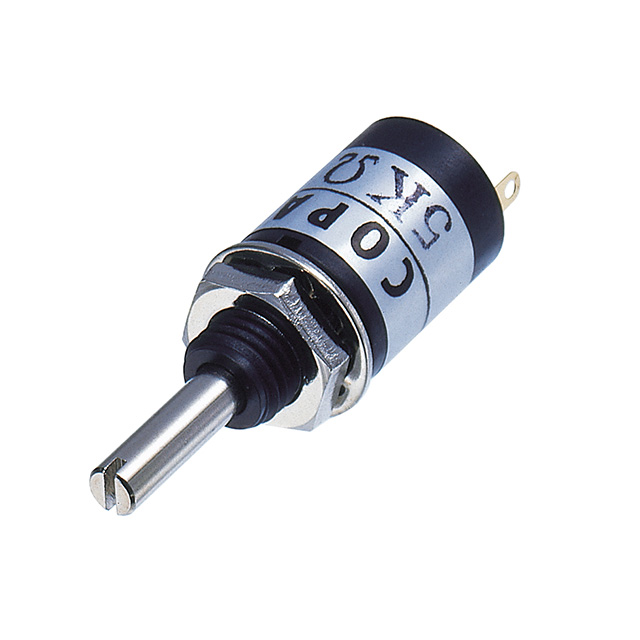

MC1003 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
ROTARY POTENTIOMETER, 1 GANG, 3TURN ROHS COMPLIANT: YES
| Part | Size - Body [diameter] | Size - Body [diameter] | Number of Gangs | Built in Switch | Bushing Thread | Bushing Thread | Features | Tolerance | Resistive Material | Termination Style | Taper | Temperature Coefficient | Rotation | Number of Turns | Mounting Type | Resistance (Ohms) | Power (Watts) | Actuator Length [x] | Actuator Length [x] | Adjustment Type | Actuator Type | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 0.394 " | 10 mm | 1 | None | 0.75 | M6 | Long Life | 20 % | Conductive Plastic | Solder Lug | Linear | ±400ppm/°C | 1080 ° | 3 | Panel Mount | 5 kOhms | 190 mW | 16.5 mm | 16.51 mm | User Defined | Slotted | |
 Nidec Components Corporation | 0.394 " | 10 mm | 1 | None | 0.75 | M6 | Long Life | 20 % | Conductive Plastic | Solder Lug | Linear | ±400ppm/°C | 1080 ° | 3 | Panel Mount | 190 mW | 16.5 mm | 16.51 mm | User Defined | Slotted | 10k |
