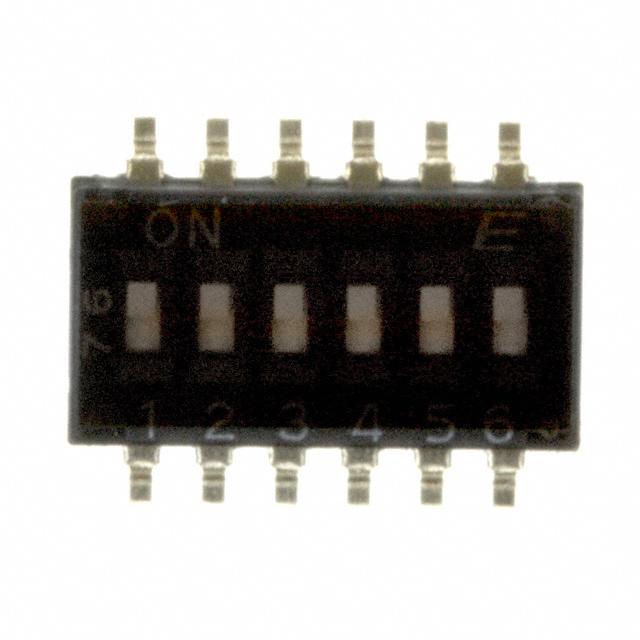

KAN1106 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Electrical Life | Mechanical Life | Length [x] | Length [x] | Circuit | Actuator Level | Mounting Type | Contact Finish | Washable | Actuator Type | Number of Positions | Termination Style | Height Above Board [z] | Height Above Board [z] | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Pitch | Current Rating (Amps) | Voltage Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Polyphenylene Sulfide (PPS) | 2000 Steps | 2000 Cycles | 8.85 mm | 0.348 in | SPST | Flush Recessed | Surface Mount | Gold | Slide (Standard) | 6 | Gull Wing | 1.6 mm | 0.063 in | Copper Alloy | 85 °C | -40 C | 0.05 " | 1.27 mm | Half | 25 mA | 24 VDC | Tape Seal | |
 E-Switch | Polyphenylene Sulfide (PPS) | 2000 Steps | 2000 Cycles | 8.85 mm | 0.348 in | SPST | Flush Recessed | Surface Mount | Gold | Slide (Standard) | 6 | Gull Wing | 1.6 mm | 0.063 in | Copper Alloy | 85 °C | -40 C | 0.05 " | 1.27 mm | Half | 25 mA | 24 VDC | Tape Seal |
