MP3V5050 Series

Catalog

PRESSURE SENSOR, 0KPA, -40 TO 125DEG C

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output [Max]	Output [Min]	Accuracy	Port Size	Port Size	Pressure Type	Output Type	Port Style	Applications	Features	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Mounting Type	Operating Pressure	Operating Pressure	Supplier Device Package

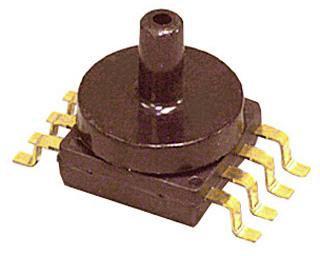

Freescale Semiconductor - NXP MP3V5050VC6U	125 °C	-40 °C	8-SMD Gull Wing Top Port	2.82 V	0.06 V	2.5 %	3.17 mm	0.13 "	Vacuum	Analog Voltage	Barbless	Board Mount	Amplified Output Temperature Compensated	-7.25 PSI	-50 kPa	-29.01 PSI	-200 kPa	2.7 V	3.3 V	Gull Wing	Surface Mount
Freescale Semiconductor - NXP MP3V5050GC6U	125 °C	-40 °C	8-SMD Gull Wing Top Port	2.82 V	0.06 V	2.5 %	3.17 mm	0.13 "	Vented Gauge	Analog Voltage	Barbed	Board Mount	Temperature Compensated			29.01 PSI	200 kPa	2.7 V	3.3 V	Gull Wing	Surface Mount	50 kPa	7.25 PSI
Freescale Semiconductor - NXP MP3V5050GP	125 °C	-40 °C	8-SMD Gull Wing Side Port	2.82 V	0.06 V	2.5 %	3.17 mm	0.13 "	Vented Gauge	Analog Voltage	Barbless	Board Mount	Temperature Compensated			29.01 PSI	200 kPa	2.7 V	3.3 V	Gull Wing	Surface Mount	50 kPa	7.25 PSI	8-SOP
