625-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS RIGHT ANGLE D-SUB CONNECTOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Mounting Type | Shell Material, Finish | Connector Style | Current Rating (Amps) | Material Flammability Rating | Termination | Shell Size, Connector Layout | Number of Positions | Contact Type | Contact Finish Thickness | Features | Number of Rows [custom] | Connector Type | Backset Spacing | Backset Spacing | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

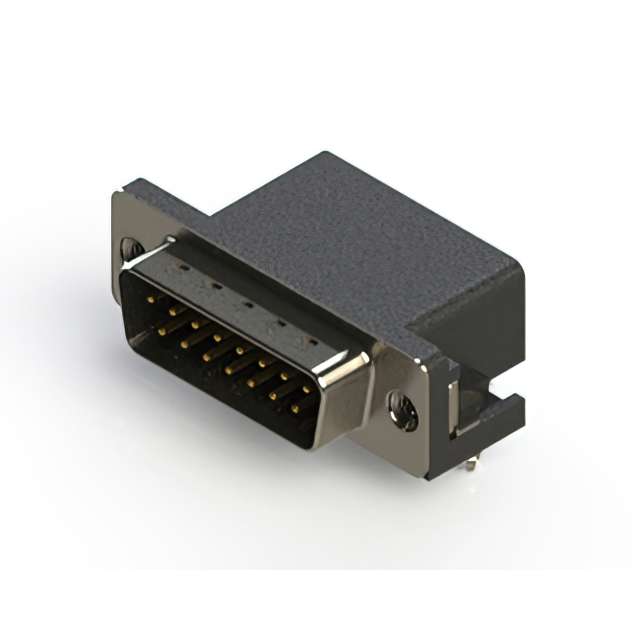

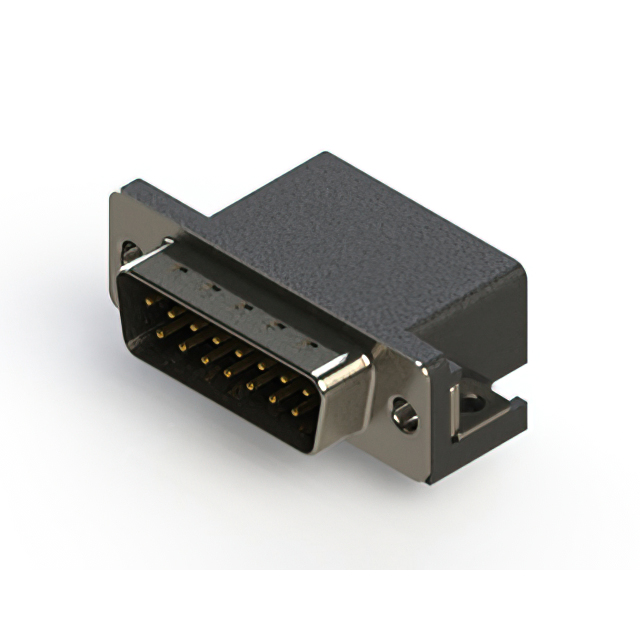

 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Flash | Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell (Unthreaded) | Gold | |||

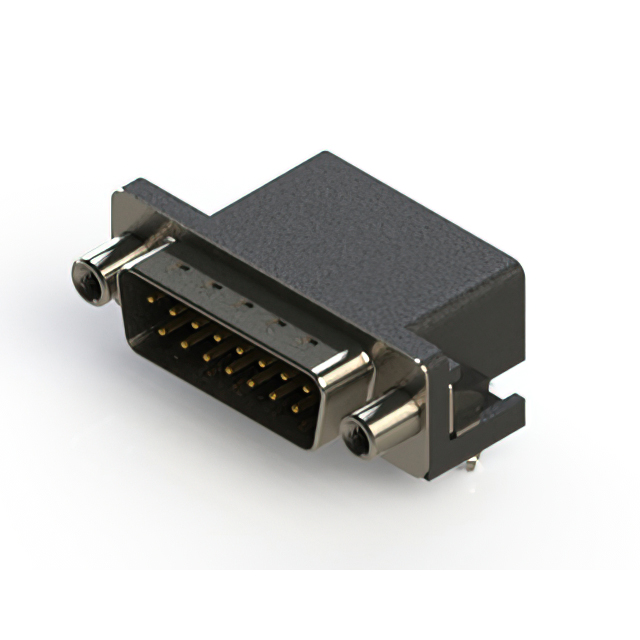

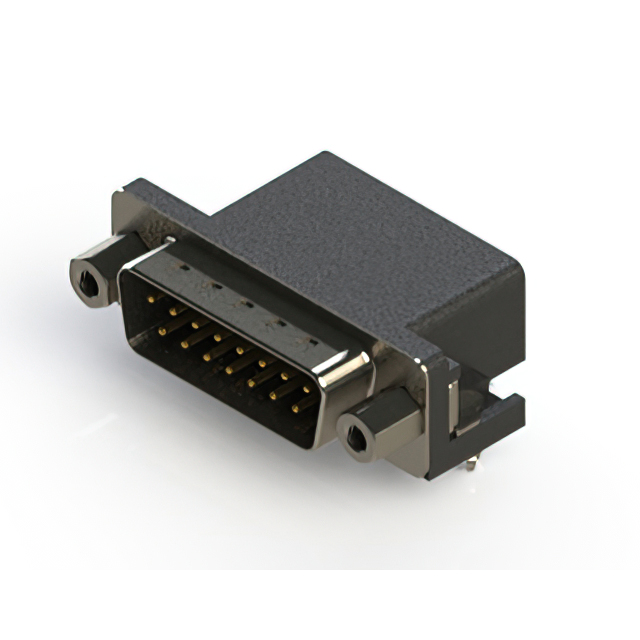

 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | 4-40 Mating Side Female Screwlock | Gold | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell (Unthreaded) | Gold | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | 4-40 | Gold | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | 4-40 | Gold | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell (M3) | Gold | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell (M3) | Gold | |||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell | Gold | 30 Áin | 0.76 Ám | 4-40 | |
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell | Gold | 4-40 | ||
 EDAC Inc. | -55 C | 85 °C | Copper Alloy | Polyester Thermoplastic | Black | Board Edge Right Angle Through Hole | Nickel Plated Steel | D-Sub | 3 A | UL94 V-0 | Solder | 2 | 15 | Signal | Flash | Board Lock Grounding Indents Mounting Brackets Shielded | 2 | Plug Male Pins | 0.584 " | 14.84 mm | Housing/Shell (Unthreaded) | Gold |
