MN13TX Series

Catalog

BRACKET PC MOUNT MINIATURE ROCKE

Part	Mechanical Life	Electrical Life	Actuator Type	Current Rating (Amps)	Actuator Marking	Voltage Rating - AC	Approval Agency	Voltage Rating - DC	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Color - Actuator/Cap
NKK Switches MN13TXG13
NKK Switches MN13TXW41-DH	50000 Cycles	25000 Steps	Concave	3 A 6 A	No Marking	125 V	UL	30 V	On-Off-On	SPDT	85 °C	-30 ░C	Right Angle Through Hole Vertical	PC Pin
NKK Switches MN13TXW13-FC	50000 Cycles	25000 Steps	Concave	3 A 6 A	No Marking	125 V	UL	30 V	On-Off-On	SPDT	85 °C	-30 ░C	Through Hole	PC Pin	Red
NKK Switches MN13TXG13-DC
NKK Switches MN13TXG13-FA
NKK Switches MN13TXW13-DA	50000 Cycles	25000 Steps	Concave	3 A 6 A	No Marking	125 V	UL	30 V	On-Off-On	SPDT	85 °C	-30 ░C	Through Hole	PC Pin	Black
NKK Switches MN13TXW13-DF	50000 Cycles	25000 Steps	Concave	3 A 6 A	No Marking	125 V	UL	30 V	On-Off-On	SPDT	85 °C	-30 ░C	Through Hole	PC Pin	Green

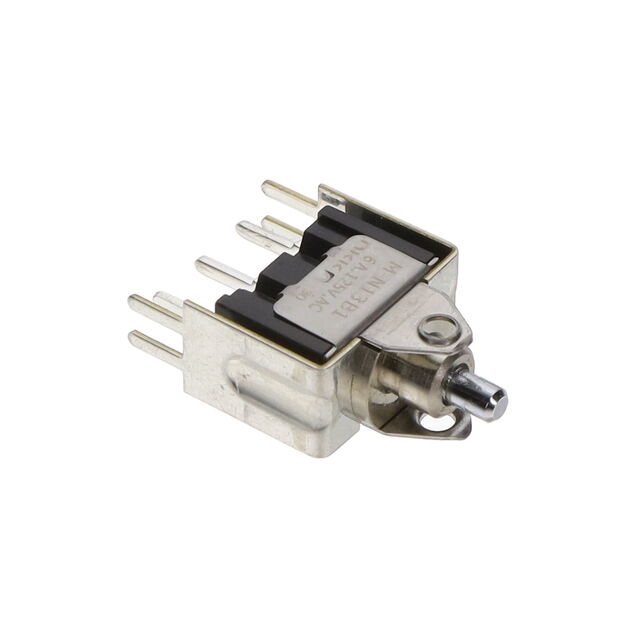

NKK Switches MN13TXW13	50000 Cycles	25000 Steps	Actuator Arm Cap Required	3 A 6 A	No Marking	125 V	UL	30 V	On-Off-On	SPDT	85 °C	-30 ░C	Through Hole	PC Pin
NKK Switches MN13TXG13-EA
NKK Switches MN13TXW13-DG	50000 Cycles	25000 Steps	Concave	3 A 6 A	No Marking	125 V	UL	30 V	On-Off-On	SPDT	85 °C	-30 ░C	Through Hole	PC Pin	Blue
