737-026 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 26POS 0.156

Part	Termination Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Rows	Number of Positions/Bay/Row	Pitch	Pitch	Number of Positions	Read Out	Card Type	Mounting Type	Color	Contact Material	Contact Finish	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 737-026-540-106	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Female	1	26	3.96 mm	0.156 in	26	Single	Non Specified - Single Edge	Through Hole	Black	Copper Alloy	Gold
EDAC Inc. 737-026-540-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Female	1	26	3.96 mm	0.156 in	26	Single	Non Specified - Single Edge	Through Hole	Black	Copper Alloy	Gold
EDAC Inc. 737-026-525-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Female	1	26	3.96 mm	0.156 in	26	Single	Non Specified - Single Edge	Through Hole	Black	Copper Alloy	Gold
EDAC Inc. 737-026-520-201		Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Female		13	3.96 mm	0.156 in	26	Dual	Non Specified - Dual Edge	Through Hole	Black	Copper Alloy	Gold	2	2
EDAC Inc. 737-026-541-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Female	1	26	3.96 mm	0.156 in	26	Single	Non Specified - Single Edge	Through Hole	Black	Copper Alloy	Gold
EDAC Inc. 737-026-522-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Female	1	26	3.96 mm	0.156 in	26	Single	Non Specified - Single Edge	Through Hole	Black	Copper Alloy	Gold
EDAC Inc. 737-026-540-206		Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Female		13	3.96 mm	0.156 in	26	Dual	Non Specified - Dual Edge	Through Hole	Black	Copper Alloy	Gold	2	2

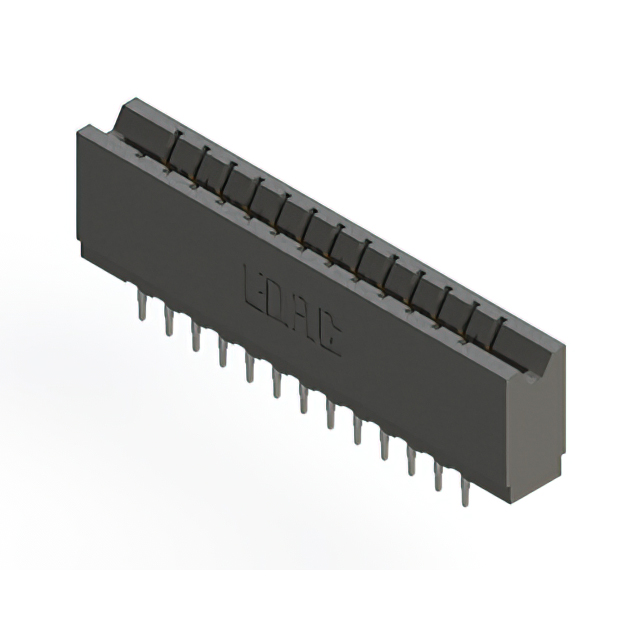

EDAC Inc. 737-026-525-206		Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Female		13	3.96 mm	0.156 in	26	Dual	Non Specified - Dual Edge	Through Hole	Black	Copper Alloy	Gold	2	2

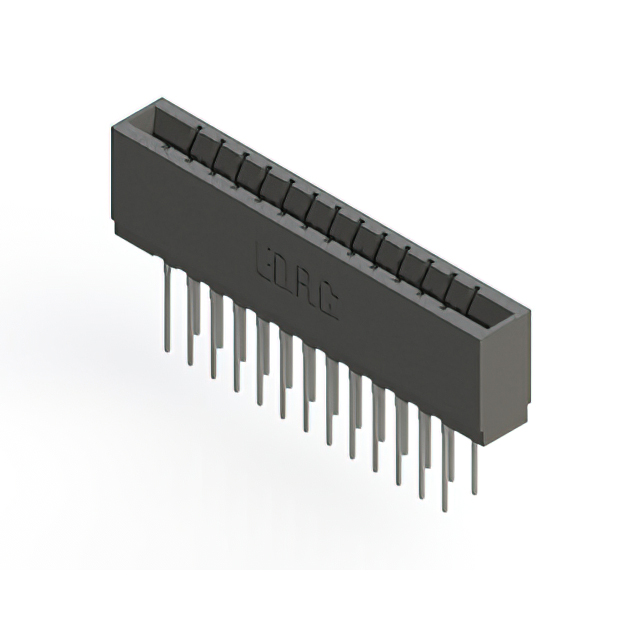

EDAC Inc. 737-026-540-201		Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Female		13	3.96 mm	0.156 in	26	Dual	Non Specified - Dual Edge	Through Hole	Black	Copper Alloy	Gold	2	2

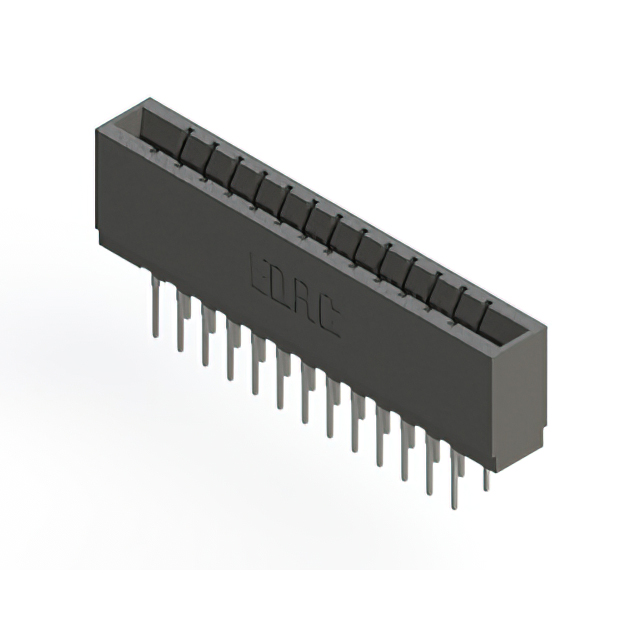

EDAC Inc. 737-026-522-201		Polyester Thermoplastic	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Female		13	3.96 mm	0.156 in	26	Dual	Non Specified - Dual Edge	Through Hole	Black	Copper Alloy	Gold	2	2
