3337 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

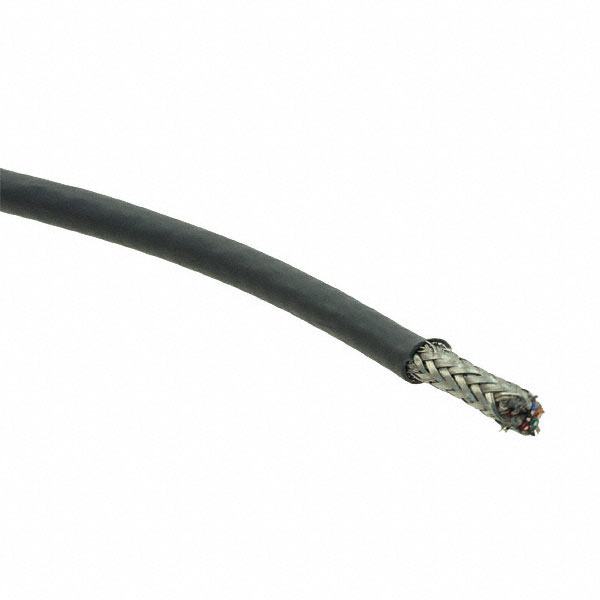

CABLE 8COND 22AWG SHLD
| Part | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand | Shield Material | Jacket (Insulation) Material | Wire Gauge | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Cable Type | Voltage | Conductor Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Length | Length | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Communication Control | 0.025 in | 0.635 mm | 19 Strands | 34 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 22 AWG | Poly-Vinyl Chloride (PVC) | 105 ░C | -55 °C | 8 | Multi-Conductor | 600 V | Copper Tinned | 90 % | 6.96 mm | 0.274 in | Braid | 1000 ft | 304.8 m | Slate |
