IL-AG5-2 Series
Manufacturer: JAE Electronics
Beta
⌘K

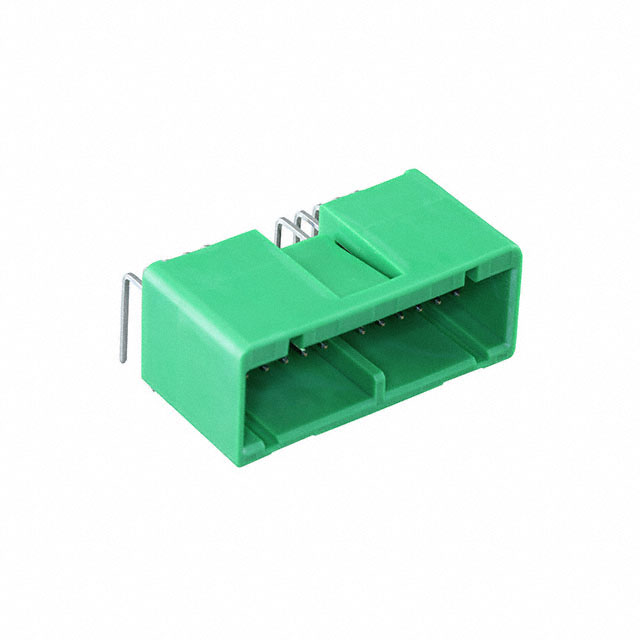

CONN HEADER R/A 22POS 2.5MM
| Part | Applications | Number of Rows [custom] | Number of Positions Loaded | Mounting Type | Fastening Type | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Contact Shape | Current Rating (Amps) | Insulation Color | Pitch - Mating | Pitch - Mating | Style | Contact Material | Contact Length - Post | Contact Length - Post | Insulation Height [custom] | Insulation Height [custom] | Connector Type | Shrouding | Note | Pitch | Pitch | Color | Row Spacing | Row Spacing | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | 2 | All | Right Angle Through Hole | Push-Pull | Polybutylene Terephthalate (PBT) | 0.118 in | 3 mm | Board Guide | Solder | 85 °C | -40 C | Male Pin | 22 | 0.331 in | 8.4 mm | Tin | Square | 3 A | Green | 2.5 mm | 0.098 in | Board to Cable/Wire | Brass | 0.138 in | 3.5 mm | 0.591 in | 15 mm | Header | Shrouded - 4 Wall | |||||||

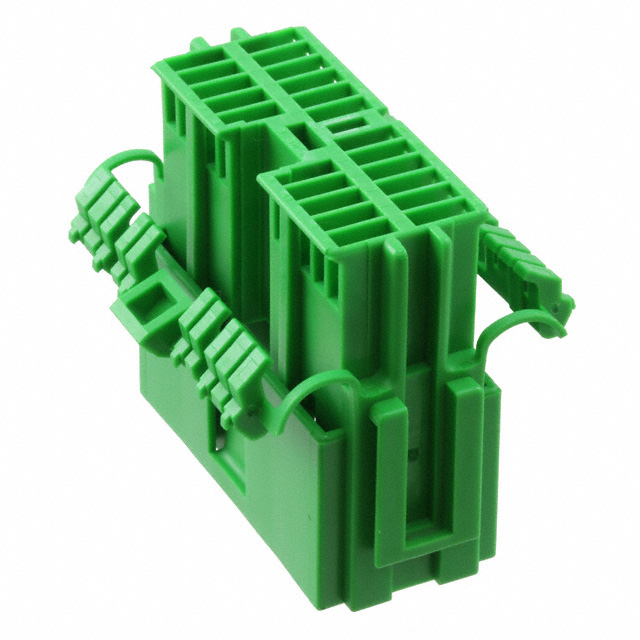

 JAE Electronics | 2 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | 85 °C | -40 C | Male Pin | 22 | Plug | Contacts Not Included | 2.5 mm | 0.098 in | Green | 3 mm | 0.118 " | Crimp |
