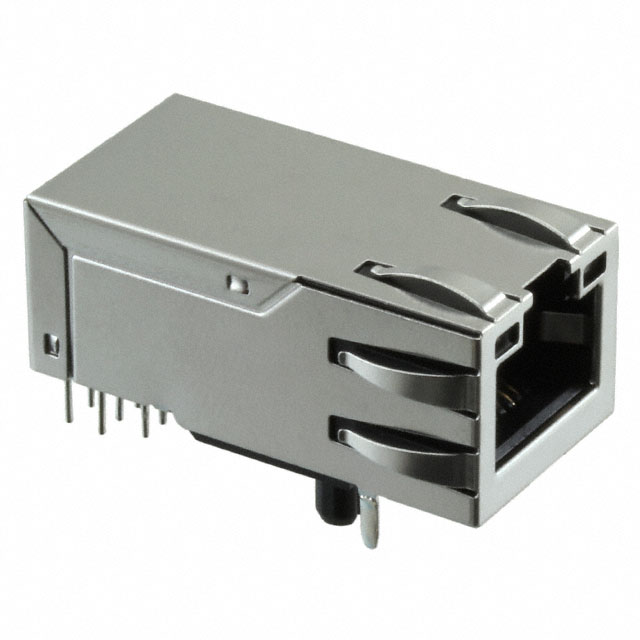

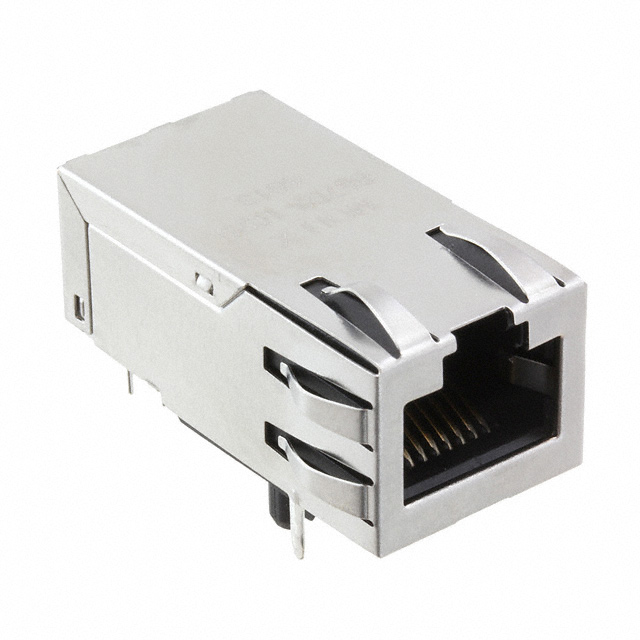

085793 Series
Manufacturer: Molex
Beta
⌘K

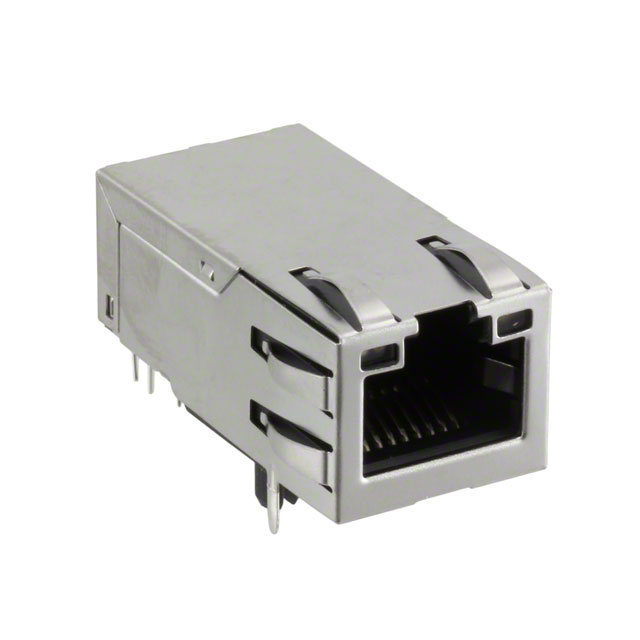

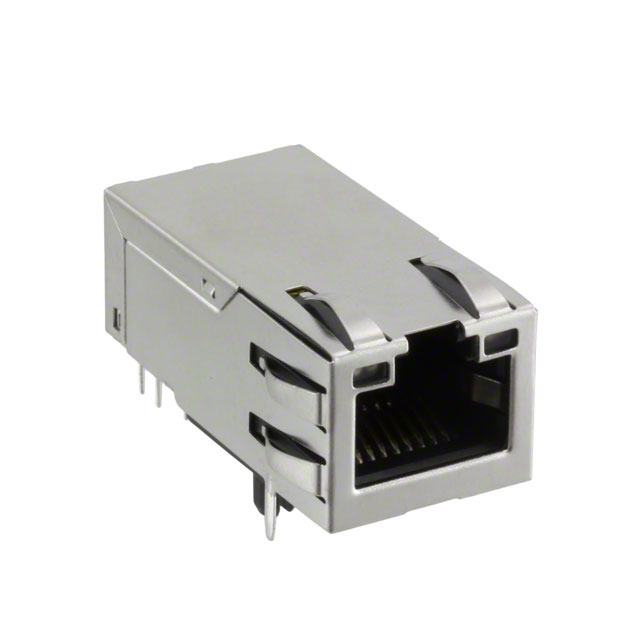

CONN JACK 1PORT 1000 BASE-T PCB
| Part | Connector Type | Shielding | Mounting Type | Number of Cores per Jack | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Height Above Board | Height Above Board | Housing Material | Tab Direction | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Number of Ports | LED Color | Number of Rows | Applications | Termination | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | RJ45 | Shielded EMI Finger | Through Hole | 8 | Gold | 70 °C | 0 °C | Copper Alloy | 0.546 in | 13.87 mm | Polybutylene Terephthalate (PBT) | Up | 0.76 Ám | 30 Áin | Stainless Steel | 1 | Yellow - Green | 1 | 10/100/1000 Base-T AutoMDIX | Solder | 90 ° |
 Molex | RJ45 | Shielded EMI Finger | Through Hole | 8 | Gold | 70 °C | 0 °C | Copper Alloy | 0.546 in | 13.87 mm | Polybutylene Terephthalate (PBT) | Up | 0.76 Ám | 30 Áin | Stainless Steel | 1 | Green Yellow - Green | 1 | 10/100/1000 Base-T AutoMDIX | Solder | 90 ° |
 Molex | RJ45 | Shielded EMI Finger | Through Hole | 8 | Gold | 70 °C | 0 °C | Copper Alloy | 0.546 in | 13.87 mm | Polybutylene Terephthalate (PBT) | Up | 0.76 Ám | 30 Áin | Stainless Steel | 1 | Green Orange - Green | 1 | 10/100/1000 Base-T AutoMDIX | Solder | 90 ° |
 Molex | RJ45 | Shielded EMI Finger | Through Hole | 8 | Gold | 70 °C | 0 °C | Copper Alloy | 0.546 in | 13.87 mm | Polybutylene Terephthalate (PBT) | Up | 0.76 Ám | 30 Áin | Stainless Steel | 1 | Does Not Contain LED | 1 | 10/100/1000 Base-T AutoMDIX | Solder | 90 ° |
