80068 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

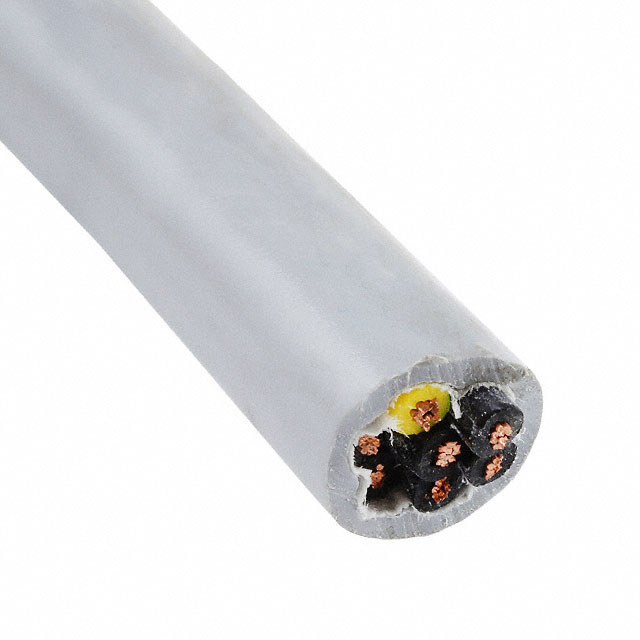

MULTICONDUCTOR CABLE, ECOFLEX® PUR, UNSHIELDED, 7 CONDUCTOR, 10 AWG, 5.21 MM², 100 FT, 30.5 M
| Part | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Conductor Insulation | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Wire Gauge | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | 0.606 in | 15.39 mm | 100 ft | 30.5 m | Polyphenylene Ether (PPE) | Polyurethane (PU) | 34 AWG | 259 | 600 V | 10 AWG | 7 | 0.053 " | 1.346 mm | 90 °C | -50 °C | Copper Tinned | Multi-Conductor |
