RU1C001 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
TRANS MOSFET N-CH 20V ±0.1A 3-PIN SOT-323FL T/R
| Part | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Vgs(th) (Max) @ Id | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Vgs (Max) | Mounting Type | Power Dissipation (Max) [Max] | Technology | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | FET Type | Package / Case | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

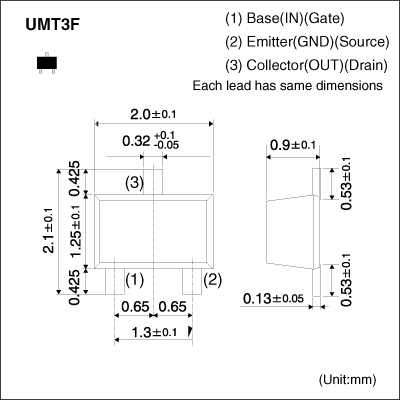

 Rohm Semiconductor | 100 mA | UMT3F | 1 V | 150 °C | 7.1 pF | 20 V | 12 V | Surface Mount | 150 mW | MOSFET (Metal Oxide) | 1.2 V | 4.5 V | N-Channel | SC-85 | 3.5 Ohm |
