MAX20019 Series

Catalog

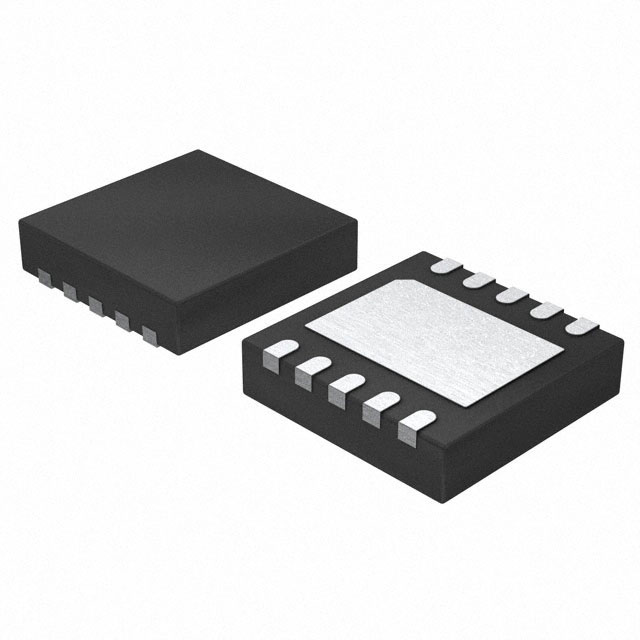

IC REG BUCK 3.3V 500MA DL 10TDFN

Part	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Output Type	Mounting Type	Topology	Current - Output	Package / Case	Function	Output Configuration	Number of Outputs	Voltage - Input (Min) [Min]	Board Type	Supplied Contents	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output	Grade	Qualification
Analog Devices Inc./Maxim Integrated MAX20019ATBA/VY+T	3.3 V	1.8 V	17 V	125 °C	-40 °C	3.2 MHz	1.81 mOhm	Surface Mount	Buck	500 mA	10-WFDFN Exposed Pad	Step-Down	Positive	2	3.5 V
Analog Devices Inc./Maxim Integrated MAX20019EVKIT#						3.2 MHz				500 mA						Fully Populated	Board(s)	MAX20019	16 V	3.5 V	DC/DC Step Down	Buck	2	Non-Isolated	1.8 V 3.3 V
Analog Devices Inc./Maxim Integrated MAX20019ATBA/V+T	3.3 V	1.8 V	17 V	125 °C	-40 °C	3.2 MHz	1.81 mOhm	Surface Mount	Buck	500 mA	10-WFDFN Exposed Pad	Step-Down	Positive	2	3.5 V											Automotive	AEC-Q100
Analog Devices Inc./Maxim Integrated MAX20019ATBI/V+T	1 V 3.3 V		17 V	125 °C	-40 °C	3.2 MHz	1.81 mOhm	Surface Mount	Buck	500 mA	10-WFDFN Exposed Pad	Step-Down	Positive	2	3.5 V											Automotive	AEC-Q100
