LPPB102 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 20POS 0.05 GOLD SMD
| Part | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Contact Material | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish Thickness - Mating | Material Flammability Rating | Connector Type | Insulation Color | Termination | Number of Positions | Number of Rows [custom] | Contact Type | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Fastening Type | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

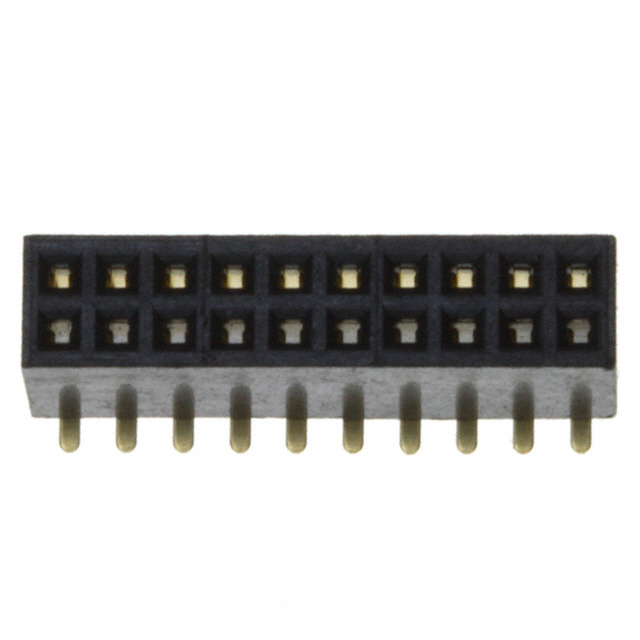

 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Square | Flash | Phosphor Bronze | Gold | 125 °C | -40 C | Surface Mount | Flash | UL94 V-0 | Header Top or Bottom Entry | Black | Solder | 20 | 2 | Female Socket | 4.65 mm | 0.183 in | 0.05 in | 1.27 mm | 1.27 mm | 0.05 in | All | Push-Pull | Gold | |

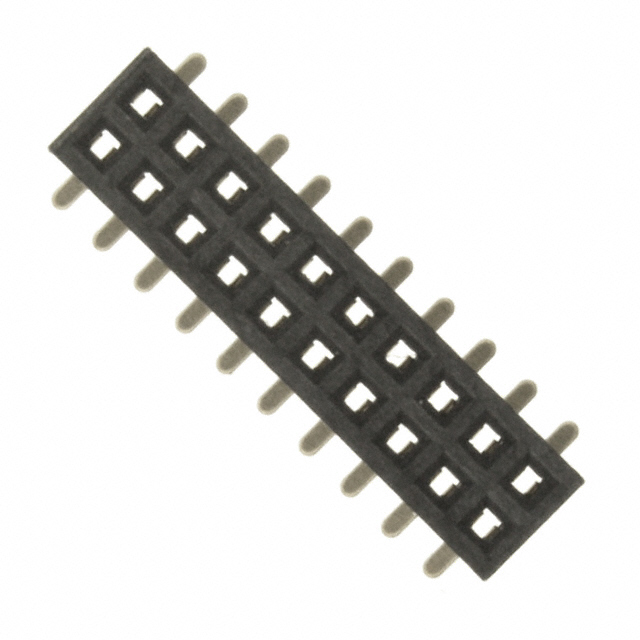

 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Square | Flash | Phosphor Bronze | Gold | 125 °C | -40 C | Surface Mount | Flash | UL94 V-0 | Header Top or Bottom Entry | Black | Solder | 20 | 2 | Female Socket | 4.65 mm | 0.183 in | 0.05 in | 1.27 mm | 1.27 mm | 0.05 in | All | Push-Pull | Gold | Board Guide |
