6100-4 Series

Catalog

CONN INLET PL 3 POS SOLDER ST PANEL MOUNT 3 TERMINAL 1 PORT BAG

Part	Voltage Rating - Appliance Inlet	Connector Type	Panel Thickness	Panel Thickness	Termination	Connector Style	Approval Agency	Material Flammability Rating	Ingress Protection	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Filter Type	Termination	Termination
SCHURTER Inc. 6100.4120	250 VAC	Receptacle Male Blades	0.079 in	2 mm	Solder Eyelet	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial
SCHURTER Inc. 6100.4110	250 VAC	Receptacle Male Blades	0.039 in	1 mm	Solder Eyelet	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial
SCHURTER Inc. 6100.4225	250 VAC	Receptacle Male Blades	0.098 in	2.5 mm	Quick Connect	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial	0.189 "	4.8 mm

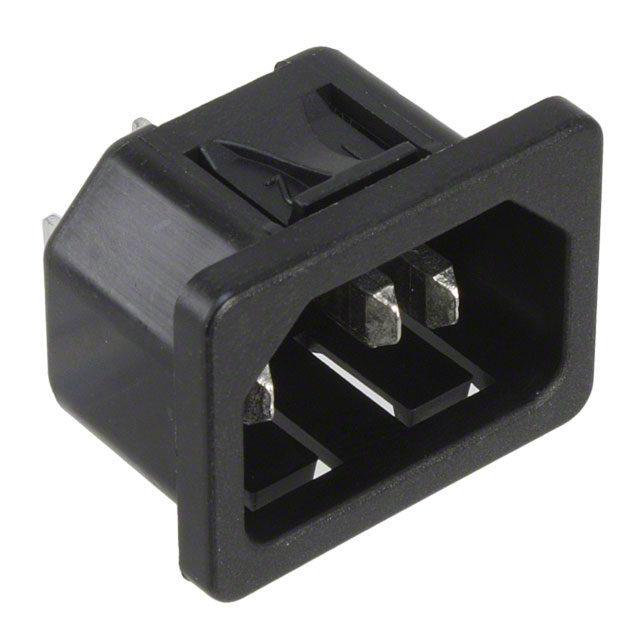

SCHURTER Inc. 6100.4112	250 VAC	Receptacle Male Blades	0.047 "	1.2 mm	Solder Eyelet	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial
SCHURTER Inc. 6100.4210	250 VAC	Receptacle Male Blades	0.039 in	1 mm	Quick Connect	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial	0.189 "	4.8 mm
SCHURTER Inc. 6100.4125	250 VAC	Receptacle Male Blades	0.098 in	2.5 mm	Solder Eyelet	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial
SCHURTER Inc. 6100.4330	250 VAC	Receptacle Male Blades	0.118 "	3 mm	Quick Connect	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial	0.25 "	6.3 mm

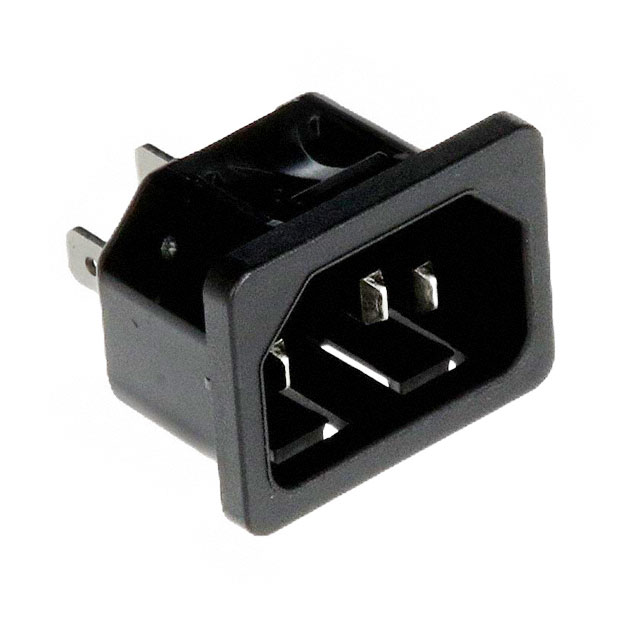

SCHURTER Inc. 6100.4216	250 VAC	Receptacle Male Blades	0.063 in	1.6 mm	Quick Connect	IEC 320-C14	CCC cULus ENEC	UL94 V-0	IP30	10 A	27.5 mm	20 mm	Panel Mount Snap-In	Unfiltered - Commercial	0.189 "	4.8 mm
