PX0921 Series

Catalog

CIRCULAR CONNECTOR, BUCCANEER 900 SERIES, CABLE MOUNT PLUG, 5 CONTACTS, SCREW PIN

Part	Mounting Type	Orientation	Material Flammability Rating	Features	Current Rating (Amps)	Primary Material	Termination	Voltage Rating	Contact Material	Backshell Material, Plating	Cable Opening [Max]	Cable Opening [Min]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Finish - Mating	Ingress Protection	Connector Type	Shielding

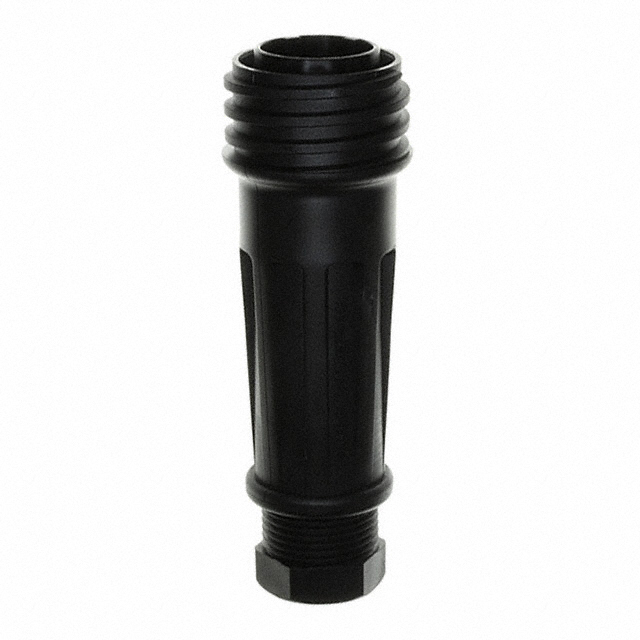

BULGIN LIMITED PX0921/05/P	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell Trailing Neutral UV Resistant	32 A	Plastic	Screw	600 VAC	Brass	Nylon Polyamide (PA)	0.512 in 13 mm	0.276 " 7 mm	Threaded	85 °C	-40 C	Black	5	Nickel	IP68 IP69K	Receptacle Male Pins	Unshielded

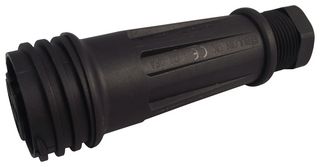

BULGIN LIMITED PX0921/04/S	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell UV Resistant	32 A	Plastic	Screw	600 VAC	Brass	Nylon Polyamide (PA)	0.512 in 13 mm	0.276 " 7 mm	Threaded	85 °C	-40 C	Black	4	Nickel	IP68 IP69K	Receptacle Female Sockets	Unshielded

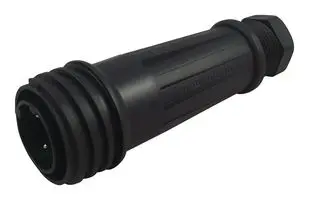

BULGIN LIMITED PX0921/03/P	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell UV Resistant	32 A	Plastic	Screw	600 VAC	Brass	Nylon Polyamide (PA)	0.512 in 13 mm	0.276 " 7 mm	Threaded	85 °C	-40 C	Black	3	Nickel	IP68 IP69K	Receptacle Male Pins	Unshielded

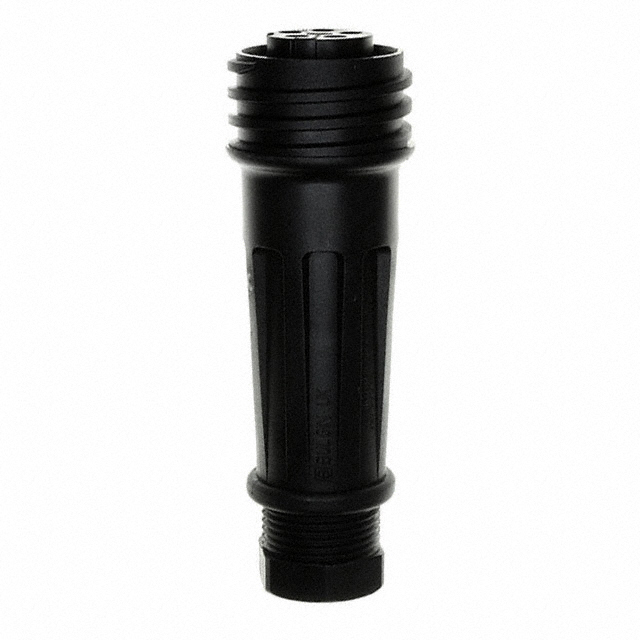

BULGIN LIMITED PX0921/05/S	Free Hanging (In-Line)	Keyed	UL94 V-0	Backshell Trailing Neutral UV Resistant	32 A	Plastic	Screw	600 VAC	Brass	Nylon Polyamide (PA)	0.512 in 13 mm	0.276 " 7 mm	Threaded	85 °C	-40 C	Black	5	Nickel	IP68 IP69K	Receptacle Female Sockets	Unshielded
