83395 Series
Manufacturer: Belden Inc.
Beta
⌘K

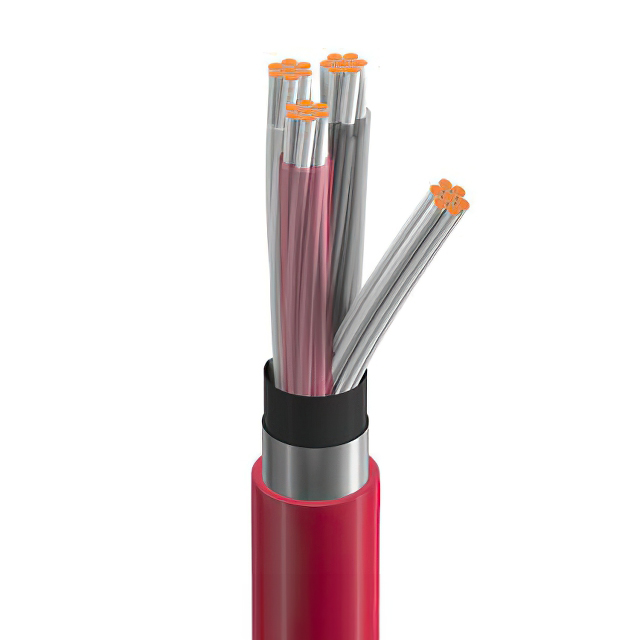

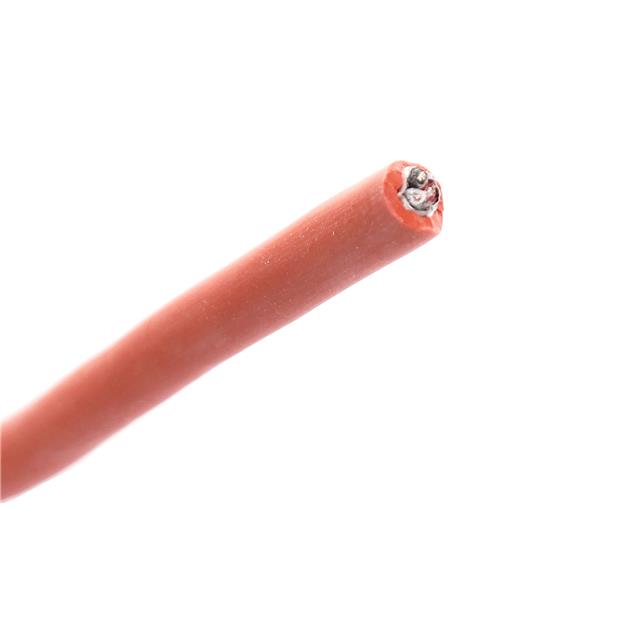

CABLE 3COND 22AWG RED SHLD 100'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket Color | Number of Conductors | Ratings | Conductor Material | Jacket (Insulation) Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Thickness [custom] | Jacket (Insulation) Thickness [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | Red | 3 | UL Style 4516 | Copper Tinned | Silicone Rubber | Communication Control Instrumentation | 30 AWG | 7 | Multi-Conductor | 5.28 mm | 0.208 " | Drain Wire | 22 AWG | 100 ft | 30.5 m | 0.0315 in | 0.8 mm | 150 °C | -70 °C | Foil | ||
 Belden Inc. | Aluminum | 100 % | Fluorinated Ethylene-Propylene (FEP) | Red | 3 | UL Style 4516 | Copper Tinned | Silicone Rubber | Communication Control Instrumentation | 30 AWG | 7 | Multi-Conductor | 5.28 mm | 0.208 " | Drain Wire | 22 AWG | 0.0315 in | 0.8 mm | 150 °C | -70 °C | Foil | 152.4 m | 500 ft |
