D37S24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

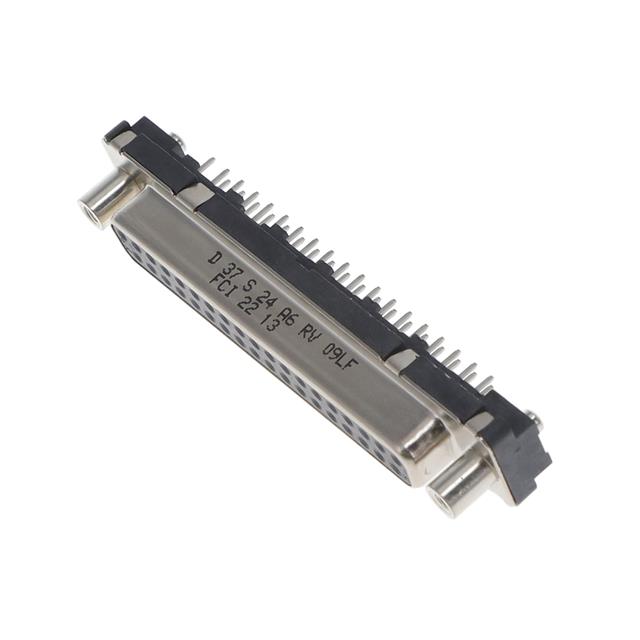

DSUB STR STB 37 SOCKET
| Part | Contact Finish | Voltage Rating | Color | Current Rating (Amps) | Connector Style | Contact Type | Connector Type | Contact Material | Number of Positions | Termination | Flange Feature | Dielectric Material | Shell Size, Connector Layout | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Contact Finish Thickness | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Phosphor Bronze | 37 | Solder | Housing/Shell (Unthreaded) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | -55 °C | 125 °C | ||||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Brass | 37 | Solder | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | -55 °C | 125 °C | Steel Tin-Nickel Plated | |||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Phosphor Bronze | 37 | Solder | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | UL94 V-0 | Through Hole | -55 °C | 125 °C | Flash | |||||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Copper Alloy | 37 | Solder Paste | Housing/Shell (M3) | Liquid Crystal Polymer (LCP) Glass Filled | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | Nickel Plated Steel | Board Guide | -55 °C | |||
 Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Phosphor Bronze | 37 | Solder | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | UL94 V-0 | Through Hole | -55 °C | 125 °C | Steel Tin-Nickel Plated | Flash | ||||
 Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Copper Alloy | 37 | Solder Paste | Female Screwlock (4-40) Mating Side | Liquid Crystal Polymer (LCP) Glass Filled | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | Nickel Plated Steel | Board Guide | -55 °C | |||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Phosphor Bronze | 37 | Solder | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | -55 °C | 125 °C | Steel Tin-Nickel Plated | |||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Copper Alloy | 37 | Solder Paste | Housing/Shell (4-40) | Liquid Crystal Polymer (LCP) Glass Filled | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | Nickel Plated Steel | Board Guide | -55 °C | |||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Phosphor Bronze | 37 | Solder | Housing/Shell (4-40) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | -55 °C | 125 °C | ||||
Amphenol ICC (FCI) | Gold | 300 VDC | Black | 5 A | D-Sub | Signal | Receptacle Female Sockets | Phosphor Bronze | 37 | Solder | Housing/Shell (M3) | Polybutylene Terephthalate (PBT) | 4 (DC C) | 2 | 0.76 Ám | 30 Áin | UL94 V-0 | Through Hole | -55 °C | 125 °C | Steel Tin-Nickel Plated |
