3104-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

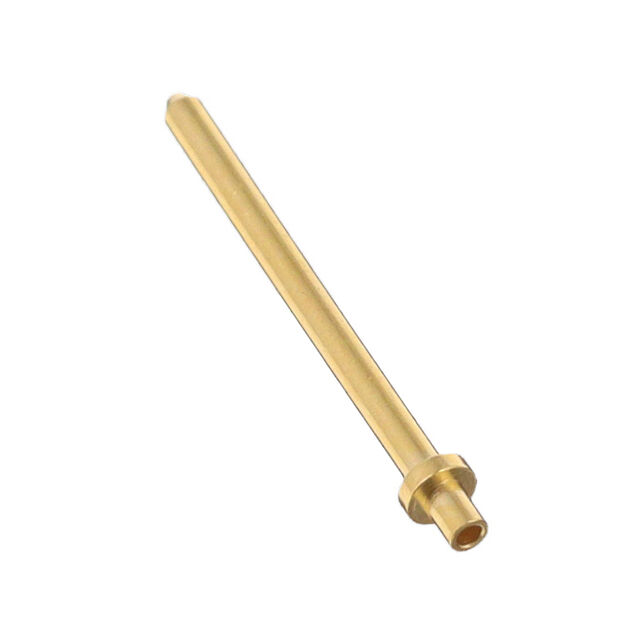

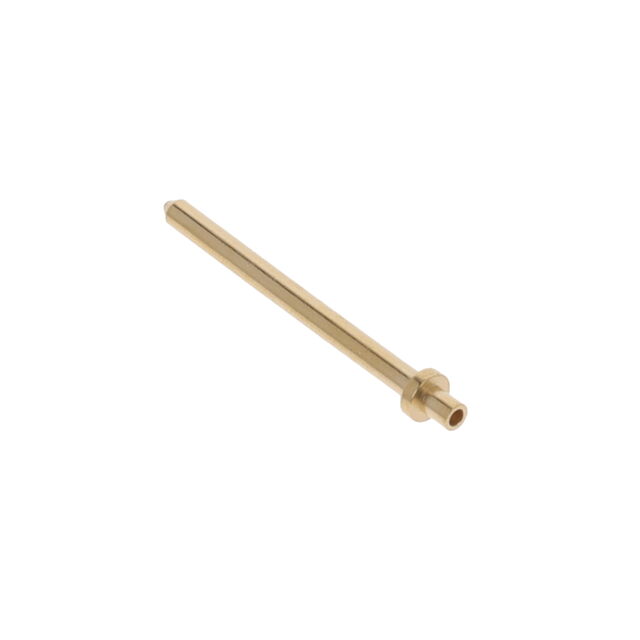

CONN PC PIN CIRC .040DIA GOLD
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Mounting Type | Terminal Style | Contact Finish | Contact Material | Length - Above Flange [x] | Length - Above Flange | Insulation | Board Thickness | Board Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Swage | Through Hole | Single End | Gold | Brass Alloy | 0.5 in | 12.7 mm | Non-Insulated | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | 14.5 mm | 0.571 " | PC Pin | 20 µin | 0.51 µm | 0.051 " | 1.3 mm |
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 1.78 mm | 0.07 in | Swage | Through Hole | Single End | Tin | Brass | 0.5 in | 12.7 mm | Non-Insulated | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | 14.5 mm | 0.571 " | PC Pin | 200 Áin | 5.08 Ám | 0.051 " | 1.3 mm |
Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Swage | Through Hole | Single End | Gold | Brass Alloy | 0.5 in | 12.7 mm | Non-Insulated | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | 14.5 mm | 0.571 " | PC Pin | 50 µin | 1.27 µm | 0.051 " | 1.3 mm |
 Mill-Max Manufacturing Corp. | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in | Swage | Through Hole | Single End | Gold | Brass Alloy | 0.5 in | 12.7 mm | Non-Insulated | 0.79 mm | 0.031 in | 0.043 in | 1.09 mm | 14.5 mm | 0.571 " | PC Pin | 10 Áin | 0.25 Ám | 0.051 " | 1.3 mm |
