R1G190 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

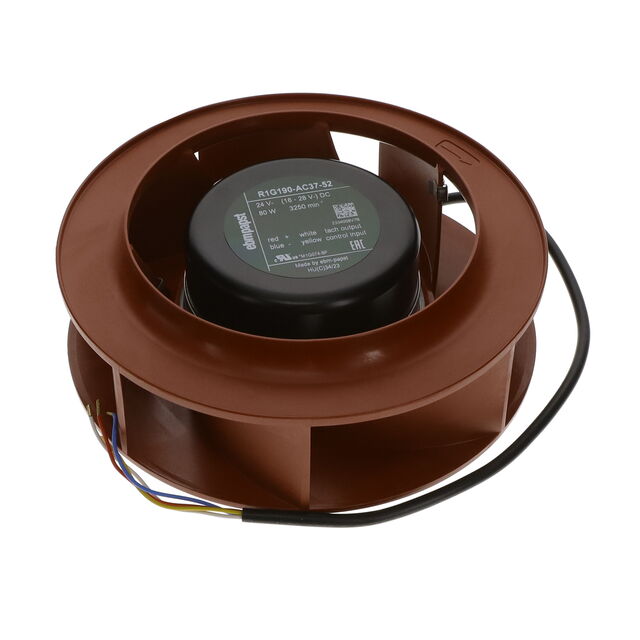

FAN IMP MTRZD 190X72MM 24VDC
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Voltage - Rated | Fan Type | RPM | Ingress Protection | Approval Agency | Bearing Type | Power (Watts) | Noise | Features | Size / Dimension [diameter] | Size / Dimension | Width [x] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 2.3 A | 16 VDC | 28 V | Polyamide (PA) Nylon | 24 VDC | Motorized Impellers | 2950 RPM | IP20 | EAC | Ball | 51 W | 68 dB | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 190 mm | Round | 72 mm | 4 Wire Leads with Splice Terminals | 40 °C | -25 °C | -25 °C | 40 °C | ||
ebm-papst Inc. | 1.2 A | 36 VDC | 57 VDC | Polyamide (PA66) Nylon 6/6 Fiberglass Reinforced | 48 VDC | Motorized Impellers | 2950 RPM | IP22 | CCC EAC | Ball | 51 W | 68 dB | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 190 mm | Round | 68.5 mm | 4 Wire Leads with Splice Terminals | 40 °C | -25 °C | -25 °C | 40 °C | ||
 ebm-papst Inc. | 3.7 A | 16 VDC | 28 V | Polyamide (PA6) Nylon 6 Fiberglass Reinforced | 24 VDC | Motorized Impellers | 3250 RPM | IP42 | CSA EAC UL | Ball | 80 W | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 190 mm | Round | 68.5 mm | 4 Wire Leads | 60 °C | -25 °C | 2.9 lbs | 1.3 kg |
