FI-JH40 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN COVER SHELL 40POS
| Part | Accessory Type | Number of Positions | For Use With/Related Products | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Type | Contact Finish - Mating | Mounting Type | Features | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Style | Number of Rows | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish Thickness | Contact Finish Thickness | Wire Type | Contact Finish | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Shell | 40 | FI-JH Series | |||||||||||||||||||||||||||||

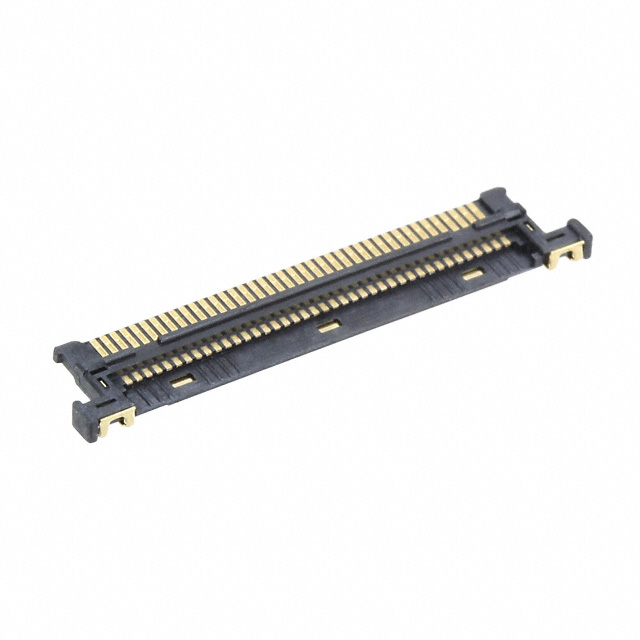

 JAE Electronics | 40 | Plastic | 1.25 µin | 0.032 µm | Copper Alloy | Non-Gendered | Gold | Right Angle Surface Mount | Solder Retention | Friction Lock | 0.4 mm | 0.016 in | Receptacle | All | 3.9 µin | 0.099 µm | Solder | Board to Cable/Wire | 1 | 1 mm | 0.039 in | Gold | ||||||||||
 JAE Electronics | 40 | Male Pin | Free Hanging (In-Line) | Friction Lock | Plug | 1 | -1 AWG | -2 AWG | 1.18 Áin | 0.03 Ám | Discrete Ribbon Cable | Gold | 0.4 mm | 0.016 in |
