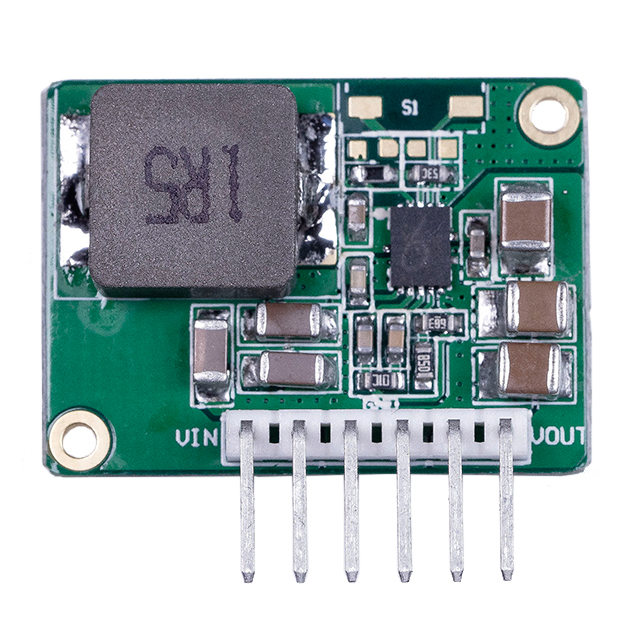

MEZD41502 Series

Catalog

NON-ISOLATED DC/DC CONVERTERS 2.7V-13V INPUT, 2A, 15V OUTPUT, STEP-UP POWER SUPPLY

Part	Operating Temperature [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Applications	Mounting Type	Features	Type	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
Monolithic Power Systems Inc. MEZD41502A-C	85 °C	15 V	2 A	ITE (Commercial)	Through Hole	OTP	Non-Isolated PoL Module	2.7 V	1	96.7 %	6-SIP Module	13 V	0.79 in	0.21 in	1.06 "	5.4 mm	20 mm	27 mm
Monolithic Power Systems Inc. MEZD41502A-A	85 °C	5 V	2 A	ITE (Commercial)	Through Hole	OTP	Non-Isolated PoL Module	2.7 V	1		6-SIP Module	4.2 V	0.79 in	0.21 in	1.06 "	5.4 mm	20 mm	27 mm
Monolithic Power Systems Inc. MEZD41502A-B	85 °C	12 V	2 A	ITE (Commercial)	Through Hole	OTP	Non-Isolated PoL Module	2.7 V	1	97.4 %	6-SIP Module	10 V	0.79 in	0.21 in	1.06 "	5.4 mm	20 mm	27 mm
