745-013 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 13POS 0.100

Part	Termination Rows	Material - Insulation	Contact Material	Read Out	Number of Rows	Contact Type	Pitch	Pitch	Termination	Card Type	Color	Gender	Number of Positions/Bay/Row	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]

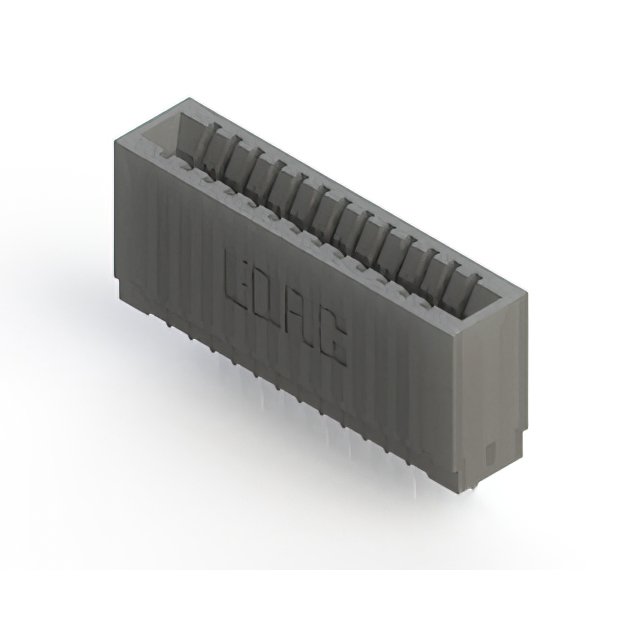

EDAC Inc. 745-013-520-101	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C

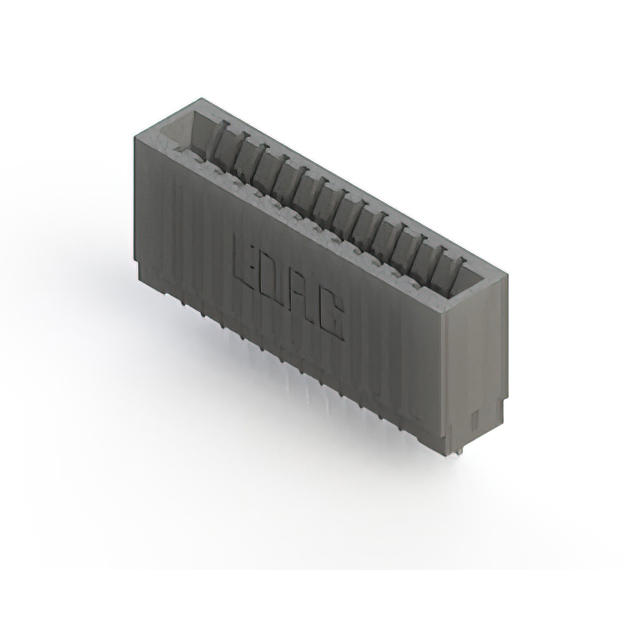

EDAC Inc. 745-013-522-101	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C

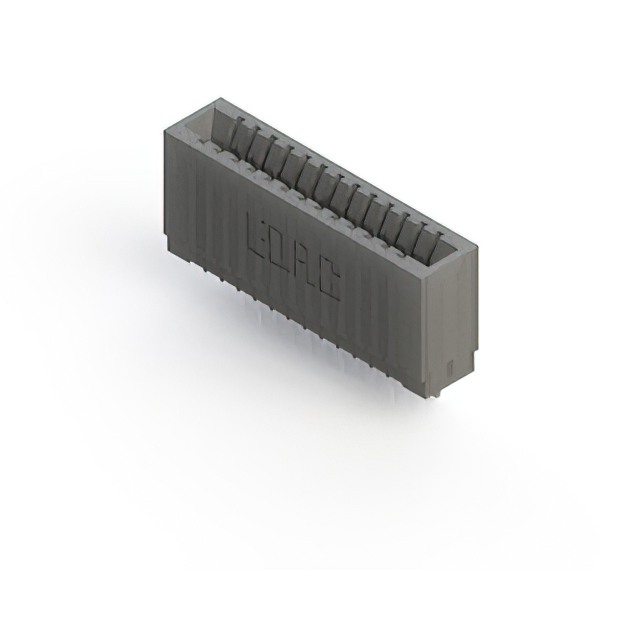

EDAC Inc. 745-013-541-101	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit Wire Wrap	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-013-540-106	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit Wire Wrap	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-013-525-106	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-013-525-101	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-013-545-106	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-013-540-101	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit Wire Wrap	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C

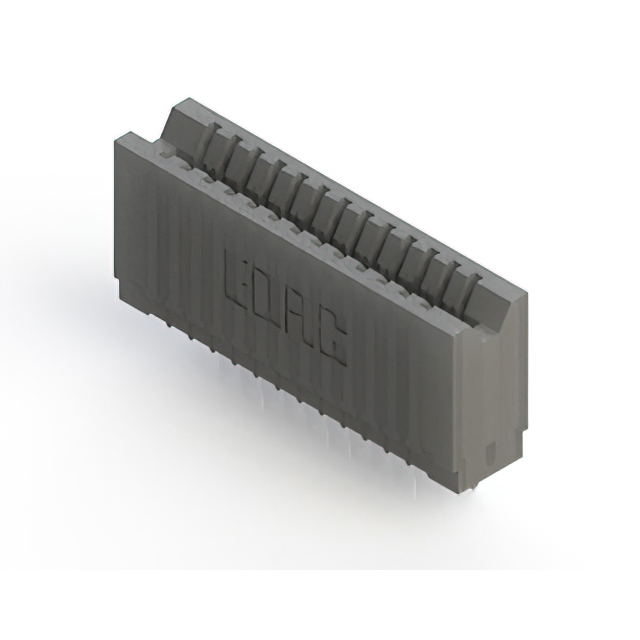

EDAC Inc. 745-013-520-106	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C

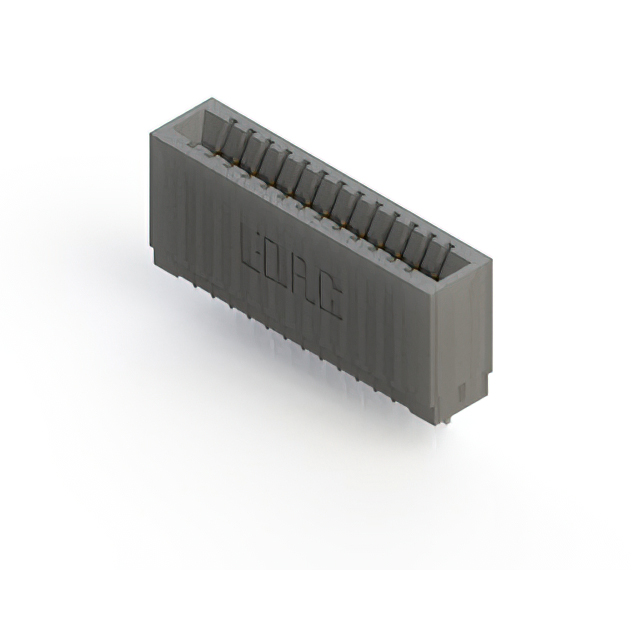

EDAC Inc. 745-013-545-101	1	Polyester Thermoplastic	Copper Alloy	Single	1	Cantilever	0.1 "	2.54 mm	Press-Fit	Non Specified - Single Edge	Black	Female	13	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Through Hole	30 Áin	0.76 Ám	-40 C	105 ░C
