002243 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 3POS 2.5MM

Part	Applications	Contact Material	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Termination	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type	Connector Type	Fastening Type	Contact Type	Insulation Color	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Rows	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch	Color	Cable Termination	Features	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Wire Gauge	Number of Positions Loaded
Molex 0022438030	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	Natural	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0
Molex 0022432060													All	Press-Fit Through Hole	Individual Wires								1				2.54 µm	100 µin	6	2.5 mm	0.098 in	0.098 in	2.5 mm	Natural	IDC	Closed End	Tin	26 AWG	24 AWG	Stranded or Solid
Molex 0022438080	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	Natural	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0			8

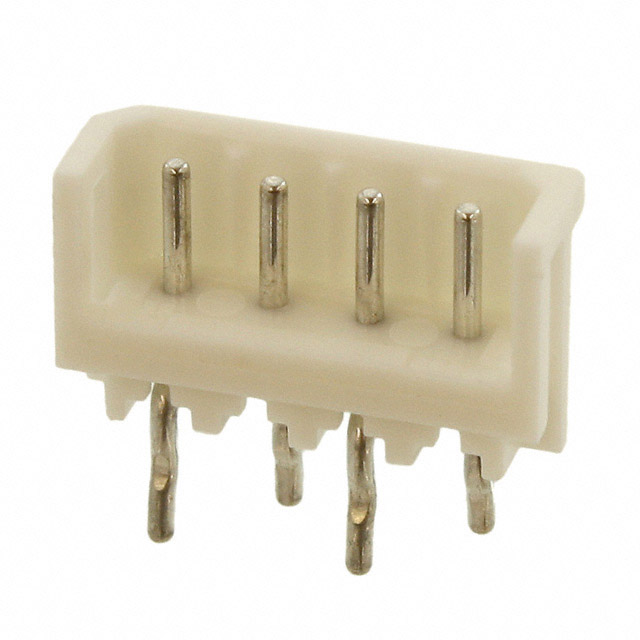

Molex 0022436040	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	White	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0			4
Molex 0022436073	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm		Through Hole	Header	Push-Pull	Male Pin	White	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0			7												5
Molex 0022438110	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	Natural	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0			11
Molex 0022438031	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	Red	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0

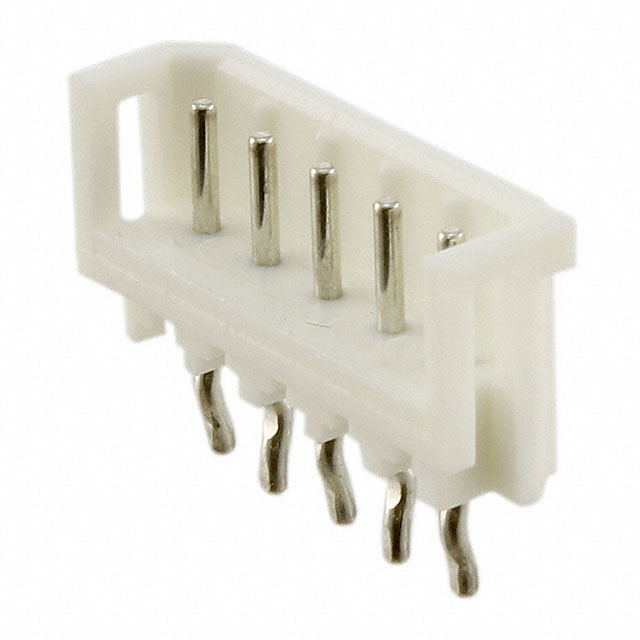

Molex 0022438050	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	Natural	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0			5
Molex 0022436020	Automotive General Purpose Industrial Medical Telecommunications	Brass	Polyester Glass Filled	Square	2.5 mm	0.098 in	Tin	0.13 "	3.3 mm	Kinked Pin Solder	0.283 in	7.19 mm	All	Through Hole	Header	Push-Pull	Male Pin	White	Shrouded - 3 Wall	100 çin	2.54 çm	Board to Cable/Wire	1	3.5 mm	0.138 in	UL94 V-0			2
Molex 0022432050													All	Press-Fit Through Hole	Individual Wires								1				2.54 µm	100 µin	5	2.5 mm	0.098 in	0.098 in	2.5 mm	Natural	IDC	Closed End	Tin	26 AWG	24 AWG	Stranded or Solid
