MX47039N Series
Manufacturer: JAE Electronics
Beta
⌘K

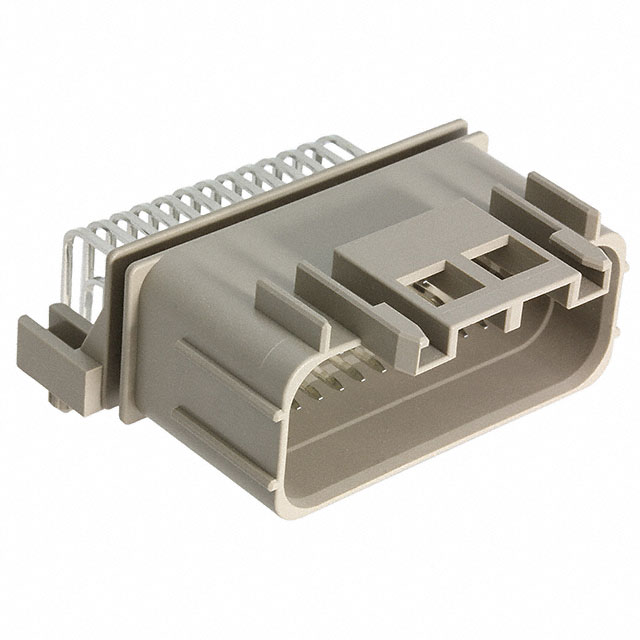

CONN HEADER R/A 39POS 2.5MM
| Part | Applications | Ingress Protection | Pitch - Mating | Pitch - Mating | Fastening Type | Termination | Contact Material | Contact Finish - Post | Mounting Type | Number of Rows [custom] | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Style | Contact Type | Insulation Material | Shrouding | Contact Shape | Number of Positions | Insulation Color | Features | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Waterproof | 2.5 mm | 0.098 in | Latch Holder | Solder | Brass | Tin | Right Angle Through Hole | 3 | Header | 3.6 mm | 0.142 in | Board to Cable/Wire | Male Pin | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Square | 39 | Gray | Board Guide | 125 °C | -40 C | 19.3 mm | 0.76 in | All | 0.138 in | 3.5 mm | 3 A |
