C90-3101F Series

Catalog

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, CABLE MOUNT RECEPTACLE, 6 CONTACTS, SOLDER SOCKET

Part	Contact Finish - Mating	Features	Connector Type	Voltage Rating	Color	Current Rating (Amps)	Number of Positions	Contact Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Cable Opening	Cable Opening	Shell Material	Primary Material	Insert Material	Shielding	Ingress Protection	Shell Size - Insert	Applications	Fastening Type	Shell Finish	Mounting Type

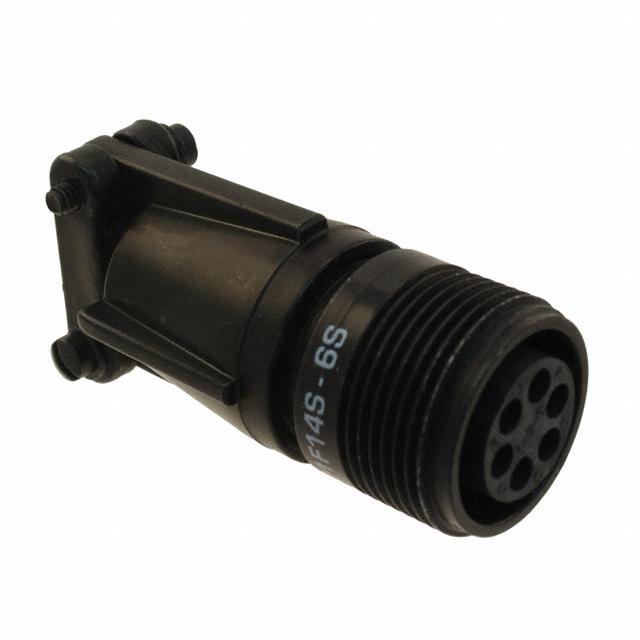

Harwin Inc. C90-3101F14S-6S	Silver	Backshell Cable Clamp	Receptacle Female Sockets	200 VAC 250 V	Black	13 A	6	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.406 in	10.3 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	14S-6	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)

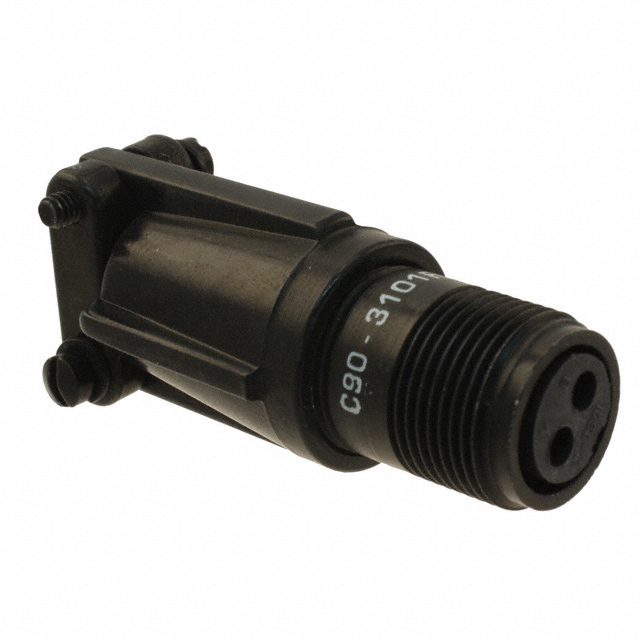

Harwin Inc. C90-3101F10SL-4S	Silver	Backshell Cable Clamp	Receptacle Female Sockets	500 VAC 700 VDC	Black	13 A	2	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.281 in	7.14 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	10SL-4	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)

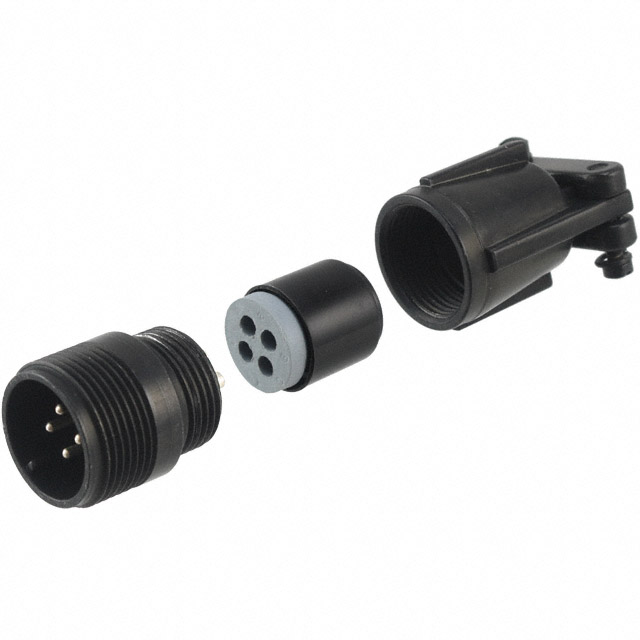

Harwin Inc. C90-3101F14S-2P	Silver	Backshell Cable Clamp	Receptacle Male Pins	200 VAC 250 V	Black	13 A	4	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.406 in	10.3 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	14S-2	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)

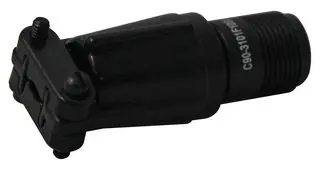

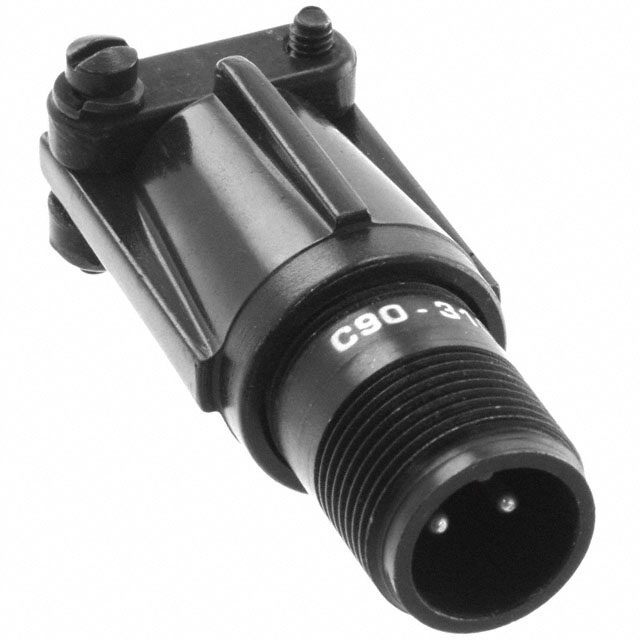

Harwin Inc. C90-3101F10SL-4P	Silver	Backshell Cable Clamp	Receptacle Male Pins	500 VAC 700 VDC	Black	13 A	2	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.281 in	7.14 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	10SL-4	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)

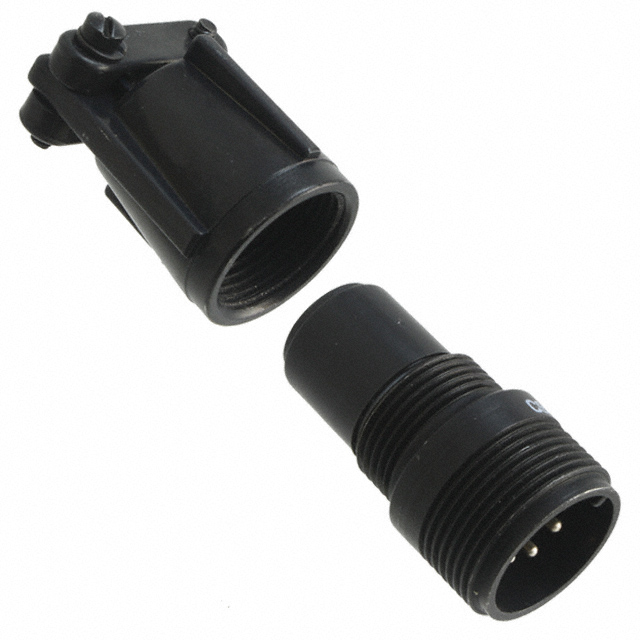

Harwin Inc. C90-3101F14S-6P	Silver	Backshell Cable Clamp	Receptacle Male Pins	200 VAC 250 V	Black	13 A	6	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.406 in	10.3 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	14S-6	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)

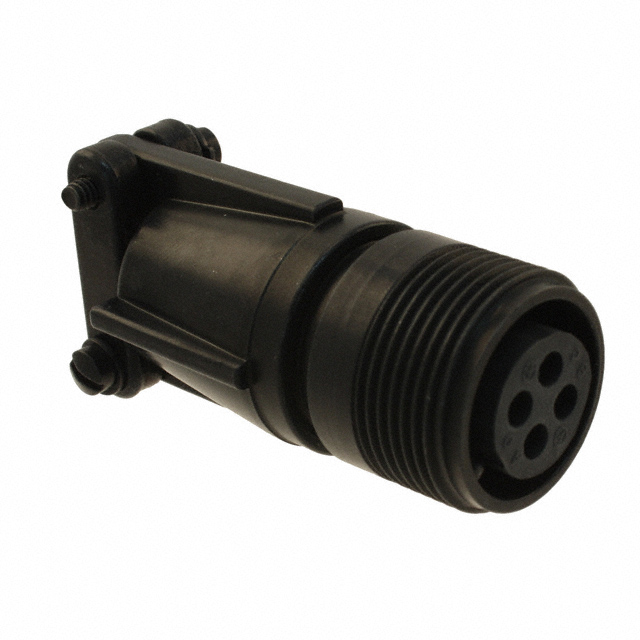

Harwin Inc. C90-3101F14S-2S	Silver	Backshell Cable Clamp	Receptacle Female Sockets	200 VAC 250 V	Black	13 A	4	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.406 in	10.3 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	14S-2	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)

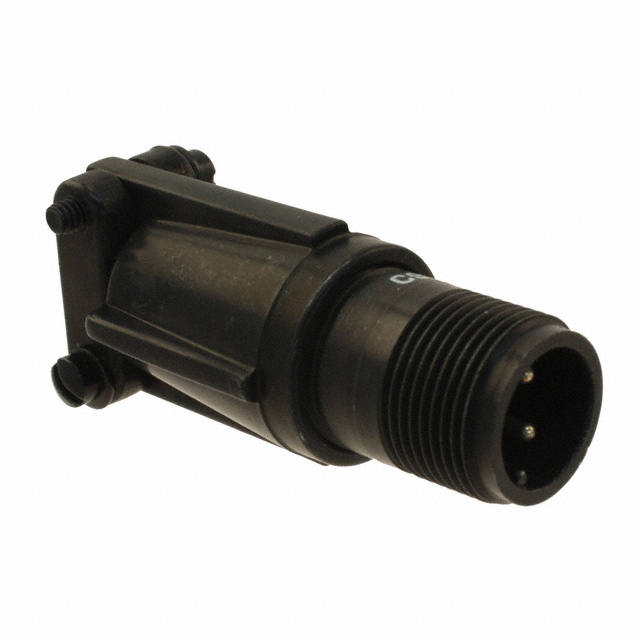

Harwin Inc. C90-3101F10SL-3P	Silver	Backshell Cable Clamp	Receptacle Male Pins	500 VAC 700 VDC	Black	13 A	3	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.281 in	7.14 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	10SL-3	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)
Harwin Inc. C90-3101F10SL-3S	Silver	Backshell Cable Clamp	Receptacle Female Sockets	500 VAC 700 VDC	Black	13 A	3	Copper Alloy	Keyed	-55 C	125 °C	Aluminum Alloy Black Zinc Cobalt	0.281 in	7.14 mm	Aluminum Alloy	Metal	Synthetic Rubber	Unshielded	IP67 - Dust Tight Waterproof	10SL-3	Automotive Industrial	Threaded	Black Zinc Cobalt Alloy	Free Hanging (In-Line)
