R12346 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

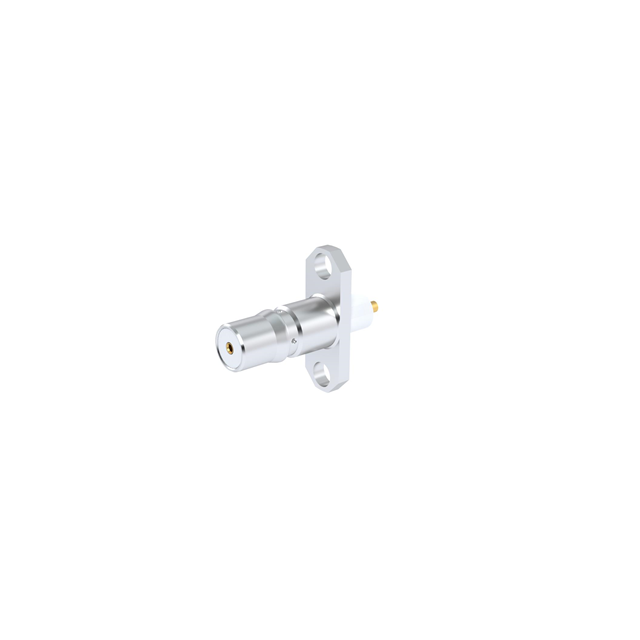

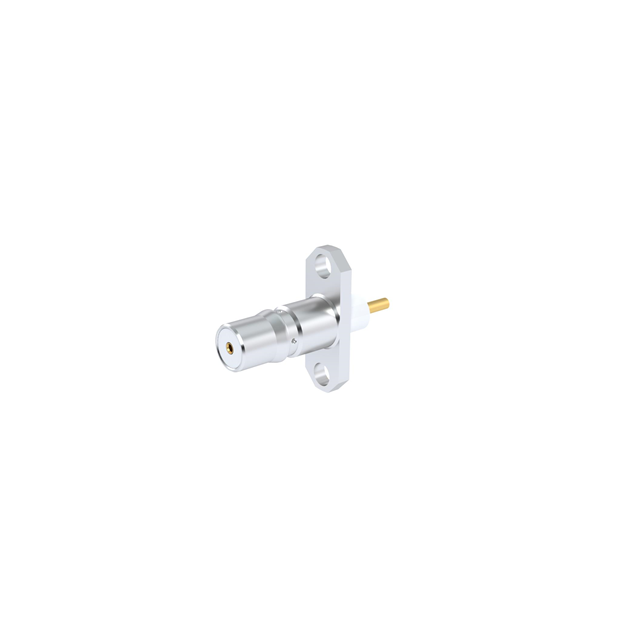

QMA / 2 HOLE FLANGE JACK RECEPTA
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Voltage Rating | Body Finish | Contact Termination | Impedance | Connector Type | Number of Ports | Housing Color | Mounting Type | Fastening Type | Shield Termination | Mounting Feature | Center Contact Material | Features | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Gold | 500 V | Gold | Solder | 50 Ohms | Female Socket Jack | 1 | Gold | Panel Mount Through Hole | Snap-On | Solder | Flange | Beryllium Copper | Extended Insulation | 6000 MHz |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Gold | 500 V | Gold | Solder | 50 Ohms | Female Socket Jack | 1 | Gold | Panel Mount Through Hole | Snap-On | Solder | Flange | Beryllium Copper | Extended Insulation | 6000 MHz |
