SM141K05 Series
Manufacturer: ANYSOLAR Ltd
Beta
⌘K

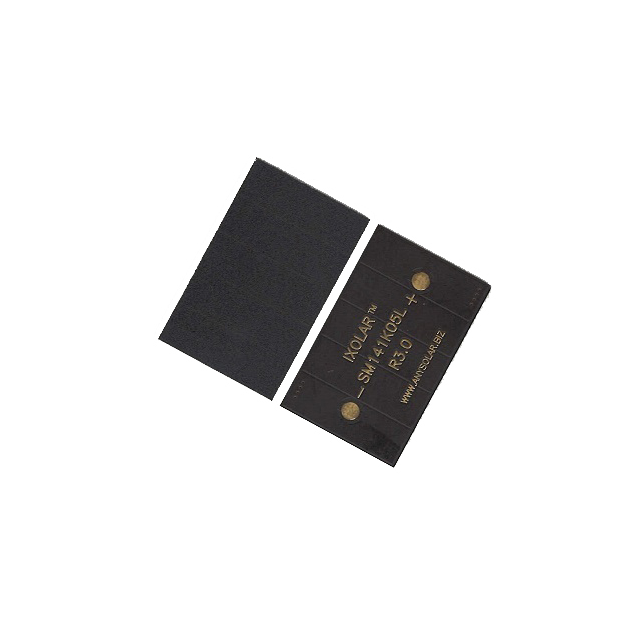

MONOCRYST SOLAR CELL 154MW 3.42V
| Part | Current @ Pmpp | Voltage @ Pmpp | Power (Watts) - Max [Max] | Package / Case | Current - Short Circuit (Isc) | Operating Temperature [Max] | Operating Temperature [Min] | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Open Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ANYSOLAR Ltd | 55 mA | 2.79 V | 154 mW | Cells | 58.6 mA | 90 °C | -40 C | Monocrystalline | 22 mm | 0.083 " | 2.1 mm | 35 mm | 1.378 in | 0.866 in | 3.42 V |
