SA43-11 Series

Catalog

DISPLAY 7SEG 0.43" SGL GRN 14DIP

Part	Power Dissipation (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Package / Case	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Color	Common Pin	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Number of Characters

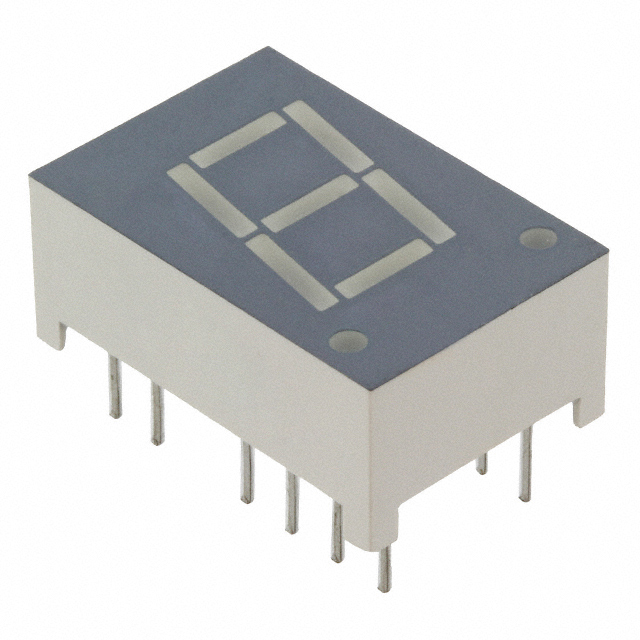

Kingbright SA43-11GWA	62.5 mW	20 mA	2.2 V	7-Segment	14-DIP	0.3 in	7.62 mm	19 mm	12.6 mm	0.31 "	0.496 in	0.748 in	7.87 mm	Green	Common Anode	10 mcd	10.92 mm	0.43 in	565 nm	1
Kingbright SA43-11SRWA	75 mw	20 mA	1.85 V	7-Segment	14-DIP	0.3 in	7.62 mm	19 mm	12.6 mm	0.31 "	0.496 in	0.748 in	7.87 mm	Red	Common Anode	42 mcd	10.92 mm	0.43 in	660 nm	1

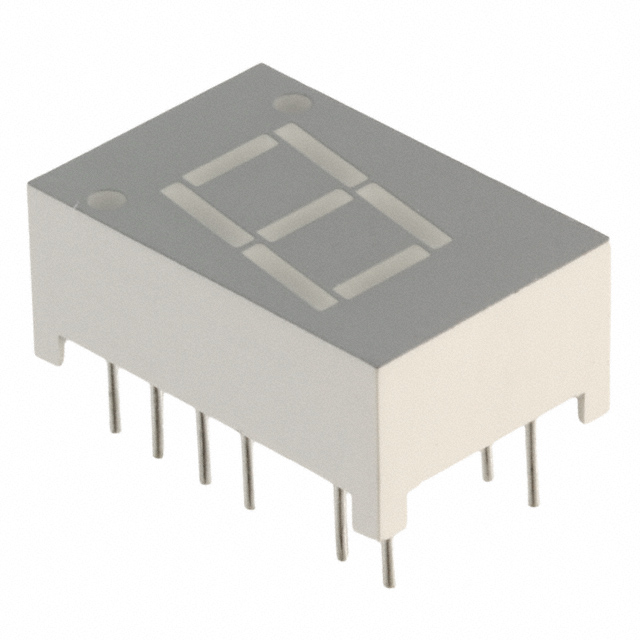

Kingbright SA43-11EWA	75 mw	20 mA	2 V	7-Segment	14-DIP	0.3 in	7.62 mm	19 mm	12.6 mm	0.31 "	0.496 in	0.748 in	7.87 mm	Red	Common Anode	6.9 mcd	10.92 mm	0.43 in	627 nm	1
Kingbright SA43-11YWA	75 mw	20 mA	2.1 V	7-Segment	14-DIP	0.3 in	7.62 mm	19 mm	12.6 mm	0.31 "	0.496 in	0.748 in	7.87 mm	Yellow	Common Anode	6.5 mcd	10.92 mm	0.43 in	590 nm	1

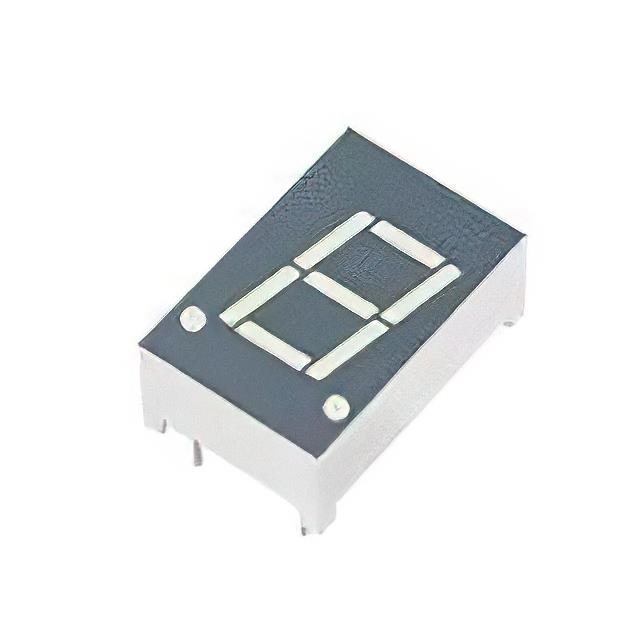

Kingbright SA43-11SURKWA	75 mw	10 mA	1.85 V	7-Segment				19 mm	12.6 mm	0.31 "	0.496 in	0.748 in	7.87 mm	Red	Common Anode	100 mcd	10.92 mm	0.43 in	630 nm	1
