KMR432 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Outline [x]	Outline [y]	Switch Function	Mounting Type	Operating Force	Circuit	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Orientation	Illumination	Actuator Type	Features	Termination Style	Switch Travel [custom]	Contact Rating @ Voltage
Littelfuse/Commercial Vehicle Products KMR432G ULC LFS	4.6 mm	2.8 mm	Off-Mom	Surface Mount	300 gf	SPST-NO	2.5 mm	85 °C	-40 °C	300000 Cycles	Top Actuated	Non-Illuminated	Standard	Grounding Pin	Gull Wing	0.3 mm	0.05 A
Littelfuse/Commercial Vehicle Products KMR432NG LFS	4.6 mm	2.8 mm	Off-Mom	Surface Mount	300 gf	SPST-NO	2.5 mm	85 °C	-40 °C	300000 Cycles	Top Actuated	Non-Illuminated	Standard		Gull Wing	0.3 mm	0.05 A

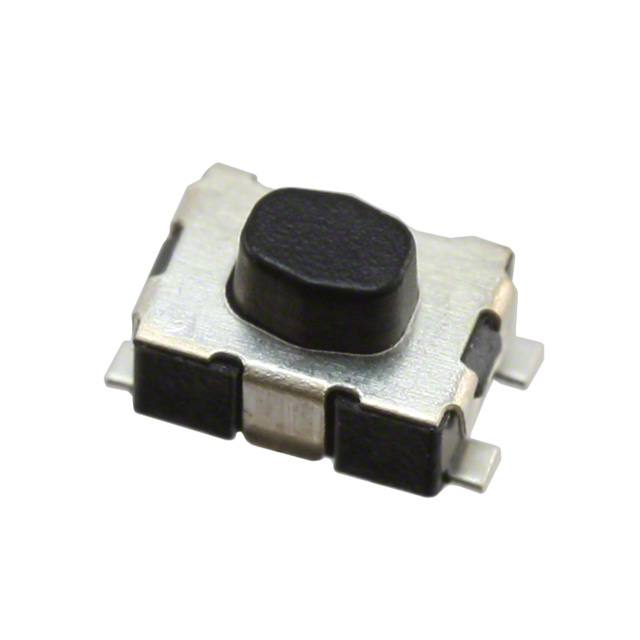

Littelfuse/Commercial Vehicle Products KMR432G LFS	4.6 mm	2.8 mm	Off-Mom	Surface Mount	300 gf	SPST-NO	2.5 mm	85 °C	-40 °C	300000 Cycles	Top Actuated	Non-Illuminated	Standard	Grounding Pin	Gull Wing	0.3 mm	0.05 A
