OSTTA04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

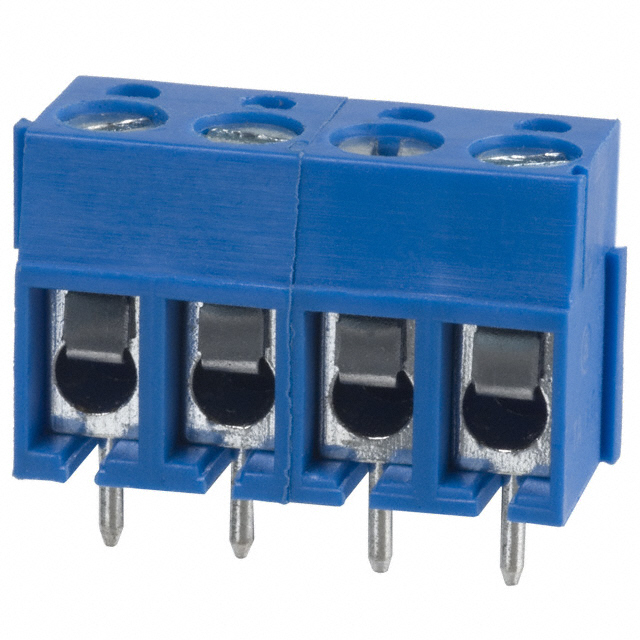

TERM BLK 4POS SIDE ENTRY 5MM PCB
| Part | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Housing Material | Color | Current | Number of Levels | Wire Gauge [Min] | Wire Gauge [Max] | Wire Termination | Mating Orientation | Mounting Type | Positions Per Level | Features | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Stainless Steel | 2.6 Lb-In | 0.3 Nm | Steel - Zinc Plated | -30 ░C | 105 ░C | M3 | Thermoplastic | Blue | 16 A | 1 | 14 AWG | 26 AWG | Screw - Leaf Spring Wire Guard | Horizontal with Board | Through Hole | 4 | Interlocking (Side) | 0.197 in | 5 mm |
