845-094 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 94POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Number of Rows [custom]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Flange Feature	Contact Finish	Termination	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Material	Number of Positions	Number of Positions/Bay/Row	Read Out	Gender	Color	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-094-560-507	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C	Card Extender	M3 Threaded Insert Top Mount Opening	Gold	Solder	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green
EDAC Inc. 845-094-544-207	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C		Flush Mount M3 Threaded Insert Top Opening	Gold	Wire Wrap	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green

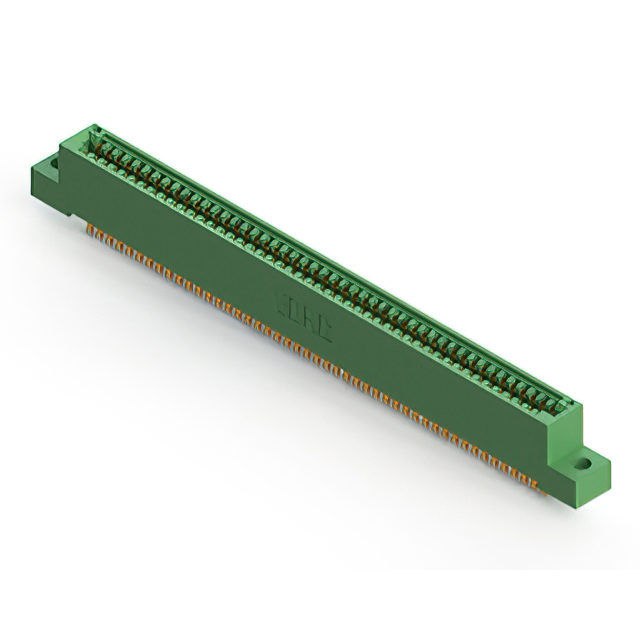

EDAC Inc. 845-094-555-204	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C	Card Extender	Flush Mount Top Opening Unthreaded	Gold	Solder	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green	0.156 "	3.96 mm
EDAC Inc. 845-094-541-202	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C		Flush Mount Top Opening Unthreaded	Gold	Wire Wrap	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green	0.128 "	3.25 mm

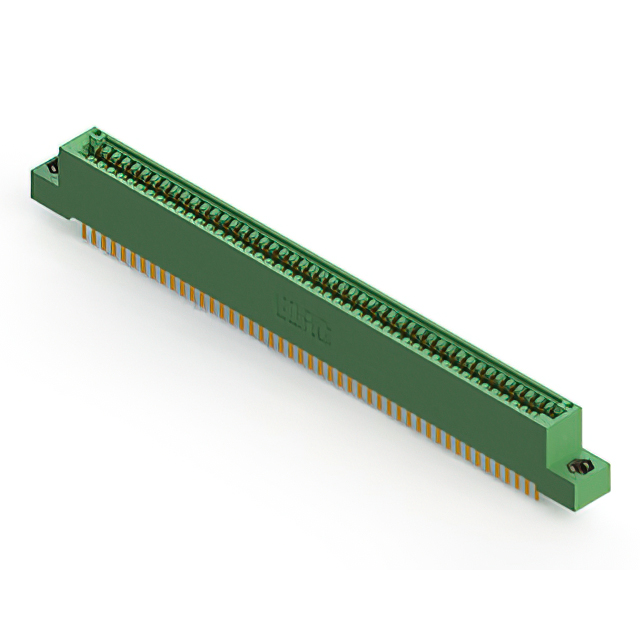

EDAC Inc. 845-094-520-208	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C		4-40 Flush Mount Threaded Insert Top Opening	Gold	Solder	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green

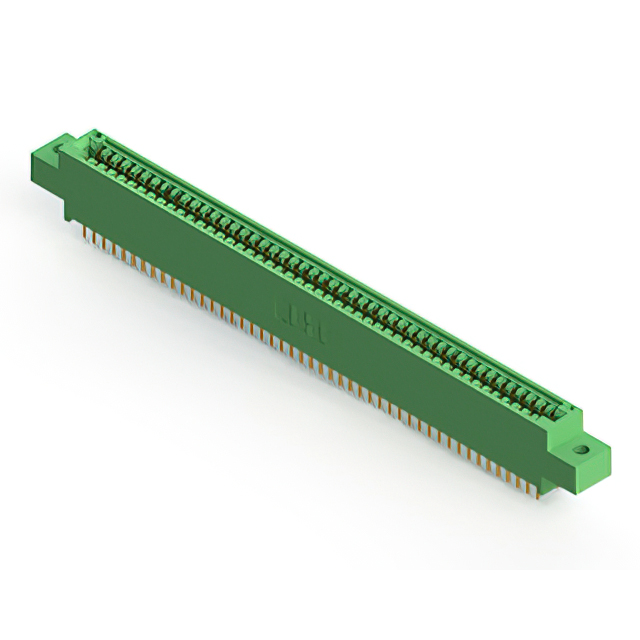

EDAC Inc. 845-094-525-802	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C			Gold	Solder	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green	0.128 "	3.25 mm
EDAC Inc. 845-094-500-504	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C			Gold	Solder Eyelet(s)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green	0.156 "	3.96 mm
EDAC Inc. 845-094-541-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C			Gold	Wire Wrap	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green

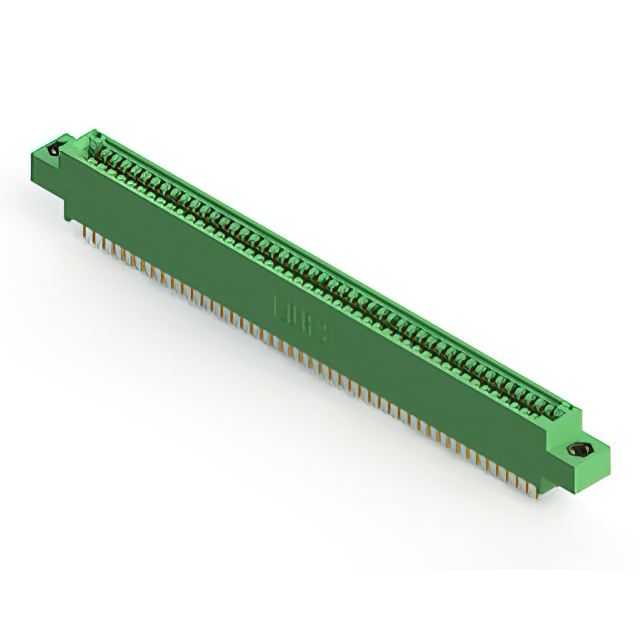

EDAC Inc. 845-094-525-808	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C		4-40 Threaded Insert Top Mount Opening	Gold	Solder	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green

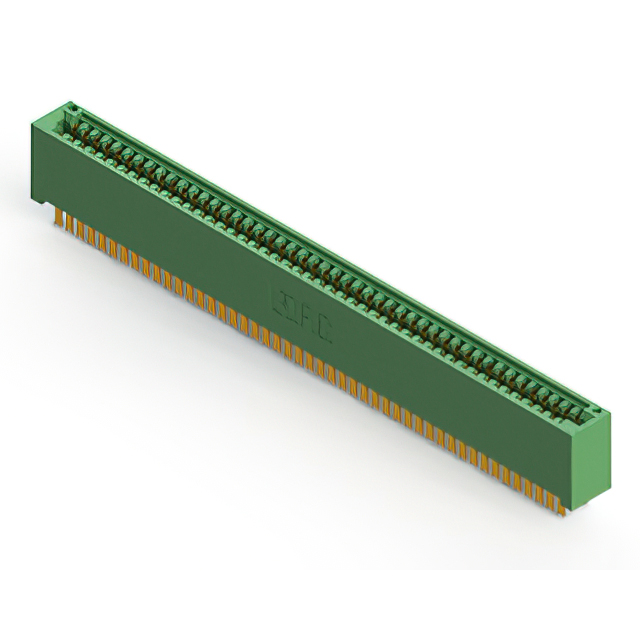

EDAC Inc. 845-094-500-201	2	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	2	Cantilever	125 °C	-40 C			Gold	Solder Eyelet(s)	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Non Specified - Dual Edge	Copper Alloy	94	47	Dual	Female	Green
