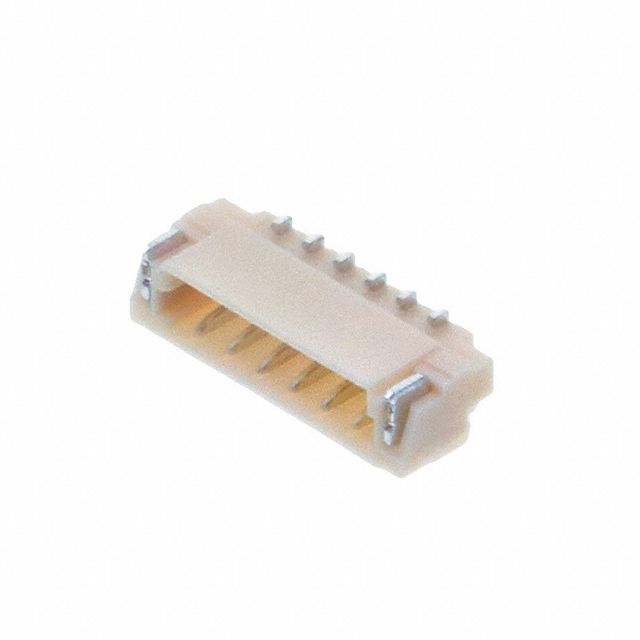

SM06B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 6POS 0.8MM
| Part | Contact Shape | Termination | Insulation Material | Features | Contact Finish - Post | Number of Positions Loaded | Number of Rows | Number of Positions | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Style | Insulation Color | Current Rating (Amps) | Contact Type | Fastening Type | Voltage Rating | Mounting Type | Material Flammability Rating | Shrouding | Contact Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Rectangular | Solder | Nylon Polyamide (PA) | Solder Retention | Tin | All | 1 | 6 | 0.069 in | 1.75 mm | 0.8 mm | 0.031 in | Board to Cable/Wire | Natural | 0.2 A 0.5 A | Outer Shroud Contact | Push-Pull | 30 VDC | Right Angle Surface Mount | UL94 V-0 | Shrouded - 4 Wall | Copper Alloy | Header | 85 °C | -25 °C |
