K20K0C-P Series
Manufacturer: ODU
Beta
⌘K

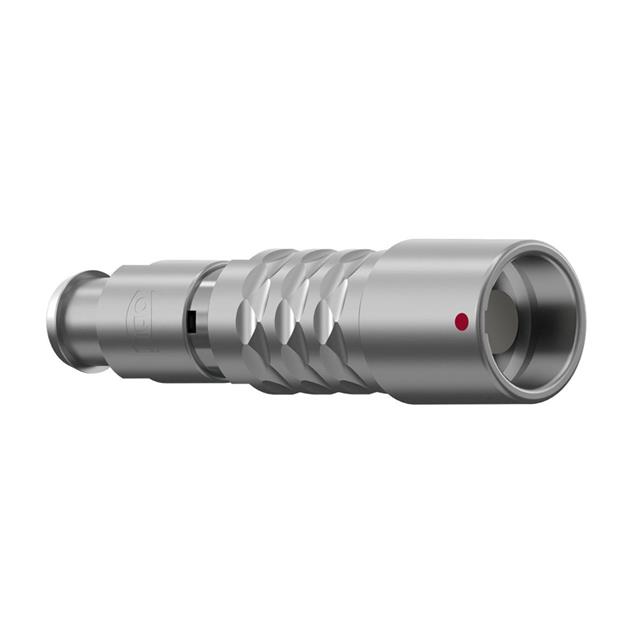

CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Current Rating (Amps) | Color | Ingress Protection | Shell Size - Insert [custom] | Mounting Type | Orientation | Shielding | Shell Finish | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Shell Material | Contact Finish - Mating | Applications | Fastening Type | Insert Material | Number of Positions | Connector Type | Features | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.5 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 2 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |
4 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 7 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |||
4 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Chrome over Nickel | 0.118 in | 0.138 in | 3.5 mm | 3 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 7 | Receptacle Female Sockets | Backshell Strain Relief | Metal | ||
4 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 7 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |
7.5 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.098 in | 0.118 " | 3 mm | 2.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 5 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |
4 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 6 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |||
7.5 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.138 " | 0.157 in | 4 mm | 3.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 4 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |
4 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.118 in | 0.138 in | 3.5 mm | 3 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 6 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |
4 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Shielded | Chrome over Nickel | 0.059 " | 0.079 " | 2 mm | 1.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | 9 | Receptacle Female Sockets | Backshell Strain Relief | Metal | |
7.5 A | Silver | IP68 - Dust Tight Waterproof | 0 | Free Hanging (In-Line) | 0 | Chrome over Nickel | 0.138 " | 0.157 in | 4 mm | 3.5 mm | Brass Chrome over Nickel | 120 °C | -40 C | Brass | Brass | Gold | Industrial Medical Military Testing Equipment & Measurement | Push-Pull | Polyetheretherketone (PEEK) | Receptacle Female Sockets | Backshell Strain Relief | Metal |
