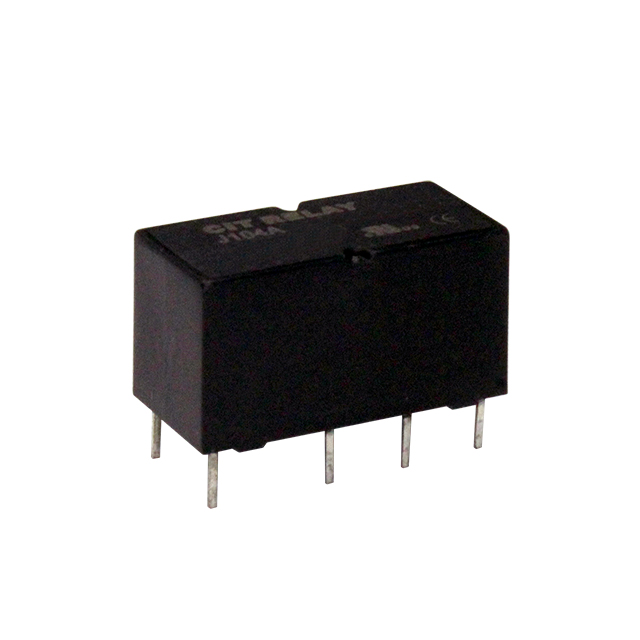

J104A2C Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE DPDT 3A 9V
| Part | Coil Resistance | Contact Material | Coil Current | Termination Style | Load - Max Switching | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Switching Voltage [Max] | Coil Voltage | Contact Rating (Current) | Mounting Type | Must Operate Voltage | Release Time | Relay Type | Must Release Voltage | Operate Time | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 203 Ohms | Gold (Au) Silver Nickel (AgNi) | 44.3 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 9 VDC | 3 A | Through Hole | 6.75 VDC | 1.5 ms | General Purpose | 0.9 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 63 Ohms | Gold (Au) Silver Nickel (AgNi) | 79.4 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 5 VDC | 3 A | Through Hole | 3.75 VDC | 1.5 ms | General Purpose | 0.5 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 16 Ohms | Gold (Au) Silver Nickel (AgNi) | 187.5 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 3 A | Through Hole | 2.25 VDC | 1.5 ms | General Purpose | 0.3 VDC | 4.5 ms | Non Latching | |
CIT Relay and Switch | 1440 Ohms | Gold (Au) Silver Nickel (AgNi) | 16.7 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 24 VDC | 3 A | Through Hole | 18 VDC | 1.5 ms | General Purpose | 2.4 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 1.07 kOhms | Gold (Au) Silver Nickel (AgNi) | 22.4 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 24 VDC | 3 A | Through Hole | 18 VDC | 1.5 ms | General Purpose | 2.4 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 360 Ohms | Gold (Au) Silver Nickel (AgNi) | 33.3 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 12 VDC | 3 A | Through Hole | 9 VDC | 1.5 ms | General Purpose | 1.2 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 280 Ohms | Gold (Au) Silver Nickel (AgNi) | 42.9 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 12 VDC | 3 A | Through Hole | 9 VDC | 1.5 ms | General Purpose | 1.2 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 5.76 kOhms | Gold (Au) Silver Nickel (AgNi) | 8.3 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 48 VDC | 3 A | Through Hole | 36 VDC | 1.5 ms | General Purpose | 4.8 VDC | 4.5 ms | Non Latching |
CIT Relay and Switch | 23 Ohms | Gold (Au) Silver Nickel (AgNi) | 130.4 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 3 A | Through Hole | 2.25 VDC | 1.5 ms | General Purpose | 0.3 VDC | 4.5 ms | Non Latching | |
CIT Relay and Switch | 45 Ohms | Gold (Au) Silver Nickel (AgNi) | 111.1 mA | PC Pin | 660 W 750 VA | Sealed - Fully | 85 °C | -40 C | DPDT (2 Form C) | 220 VDC 250 VAC | 5 VDC | 3 A | Through Hole | 3.75 VDC | 1.5 ms | General Purpose | 0.5 VDC | 4.5 ms | Non Latching |
