ALP20A Series

Manufacturer: KEMET

Catalog

CAP ALUM 100UF 400V SOLDER LUG

Part	Polarization	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension	Size / Dimension [diameter]	Tolerance [Min]	Tolerance [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Applications	Capacitance	Lead Spacing [x]	Lead Spacing [x]	Size / Dimension [diameter]	Height - Seated (Max)

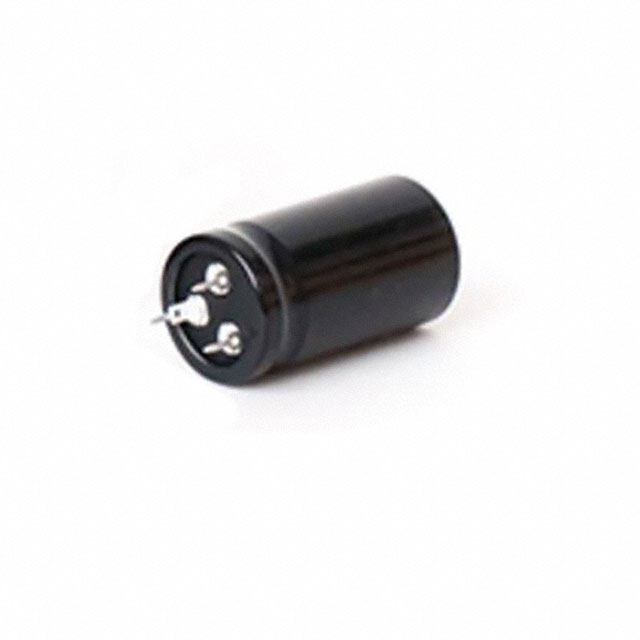

KEMET ALP20A101BB400	Polar	Radial Can - Solder Lug	1.85 in	47 mm	30 mm	1.181 "	-10 %	30 %	85 °C	-40 C	Through Hole	400 V	15 mm	0.591 in	15000 Hrs	General Purpose	100 µF
KEMET ALP20A222BB063	Polar	Radial Can - Solder Lug	1.85 in	47 mm	30 mm	1.181 "	-10 %	30 %	85 °C	-40 C	Through Hole	63 V	15 mm	0.591 in	15000 Hrs	General Purpose	2200 µF
KEMET ALP20A102DE250	Polar	Radial Can - Solder Lug	3.031 in			1.575 in	-10 %	30 %	85 °C	-40 C	Through Hole	250 V			5000 Hrs	General Purpose	1000 µF	0.787 in	20 mm	40 mm	77 mm
KEMET ALP20A682DD063	Polar	Radial Can - Solder Lug	2.244 "	57 mm		1.575 in	-10 %	30 %	85 °C	-40 C	Through Hole	63 V			5000 Hrs	General Purpose	6800 µF	0.787 in	20 mm	40 mm
