TOP156 Series

Catalog

156MIL ICT PROBE

Part	Current Rating	Length - Tip	Length - Overall	Operating Temperature (Min)	Operating Temperature (Max)	Tip Plating	Material - Tip	Material - Body	Tip Type	Tip Diameter
Chip Shine / CSRF TOP156F20/200G	5 A	0.348 in	1.33 in	-55 °C	120 °C	Gold Plated	Beryllium Copper Steel	Gold Plated Phosphor Copper
Chip Shine / CSRF TOP156E20/250G	5 A	0.348 in	1.33 in	-55 °C	120 °C	Gold Plated	Beryllium Copper Steel	Gold Plated Phosphor Copper	Spring Tip - Cup Head	0.079 in

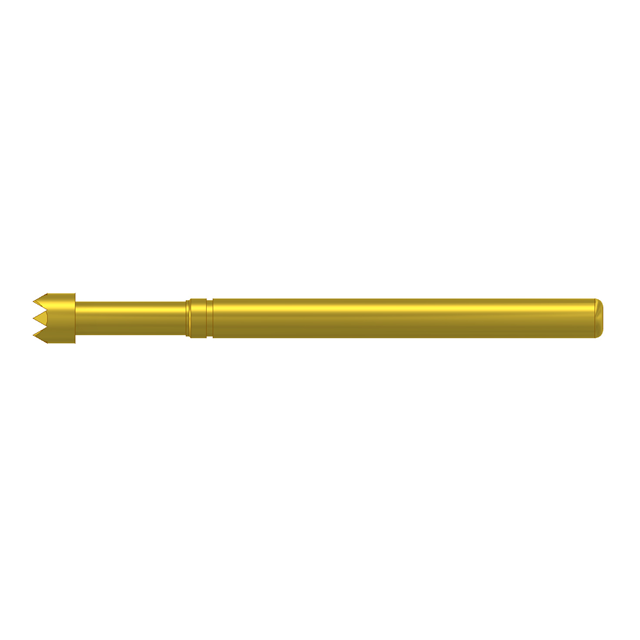

Chip Shine / CSRF TOP156I32/250G	5 A	0.348 in	1.33 in	-55 °C	120 °C	Gold Plated	Beryllium Copper Steel	Gold Plated Phosphor Copper	Spring Tip - Serrated Head	0.126 in

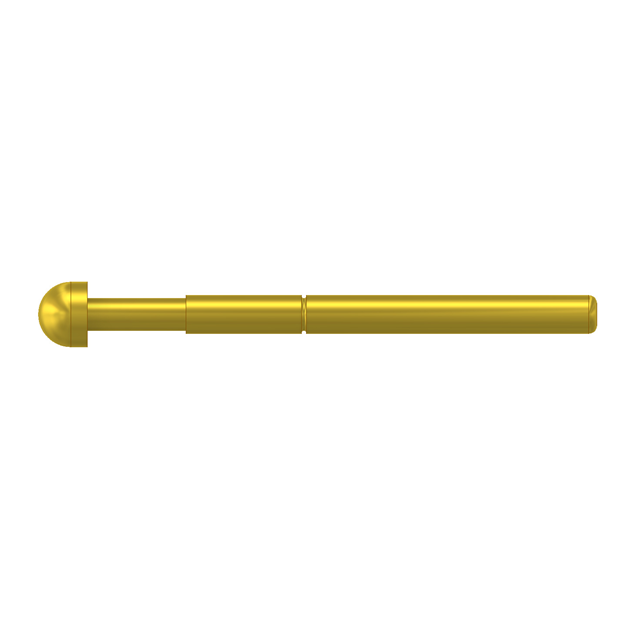

Chip Shine / CSRF TOP156C40/200G	5 A	0.348 in	1.33 in	-55 °C	120 °C	Gold Plated	Beryllium Copper Steel	Gold Plated Phosphor Copper	Spring Tip - Spherical Head	0.157 in

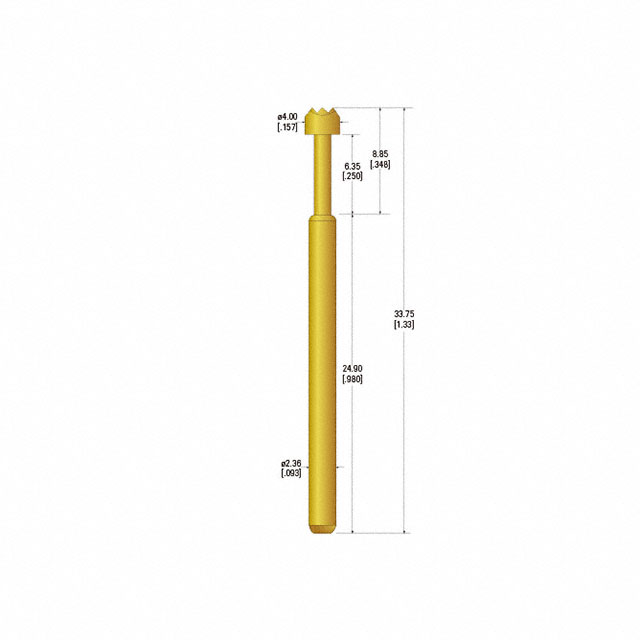

Chip Shine / CSRF TOP156C23/200G	5 A	0.348 in	1.33 in	-55 °C	120 °C	Gold Plated	Beryllium Copper Steel	Gold Plated Phosphor Copper	Spring Tip - Spherical Head	0.091 in
Chip Shine / CSRF TOP156M3/250G	5 A	0.348 in	1.33 in	-55 °C	120 °C	Gold Plated	Beryllium Copper Steel	Gold Plated Phosphor Copper
