Schaffner FN354 Series

Catalog

LINE FILTER 15A CHASSIS MOUNT

Part	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Configuration	Filter Type	Frequency - Operating	Voltage - Rated AC (Phase to Phase)	Approval Agency	Current	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Termination Style
TE Connectivity AMP Connectors FN354-15-47	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	15 A	100 °C	-25 °C	General Purpose	Terminal Block
TE Connectivity AMP Connectors FN354-25-47	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	25 A	100 °C	-25 °C	General Purpose	Terminal Block
TE Connectivity AMP Connectors FN354-12-05	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	12 A	100 °C	-25 °C	General Purpose	Quick Connect
TE Connectivity AMP Connectors FN354-25-47	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	25 A	100 °C	-25 °C	General Purpose	Terminal Block
TE Connectivity AMP Connectors FN354-6-05	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	6 A	100 °C	-25 °C	General Purpose	Quick Connect

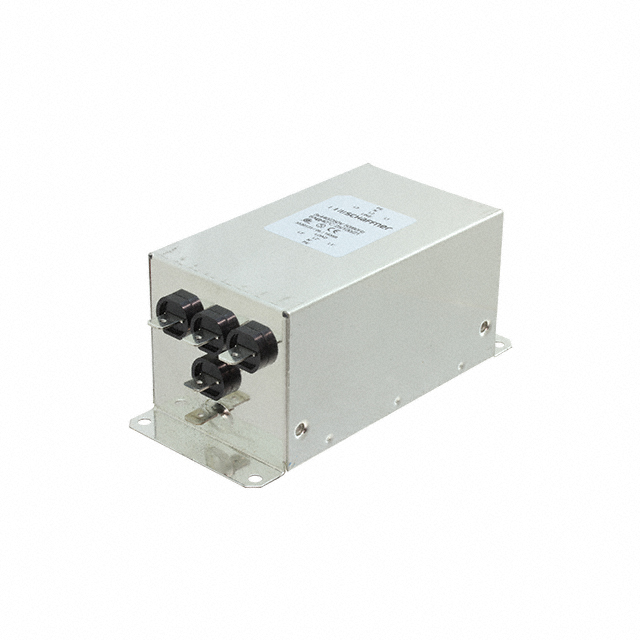

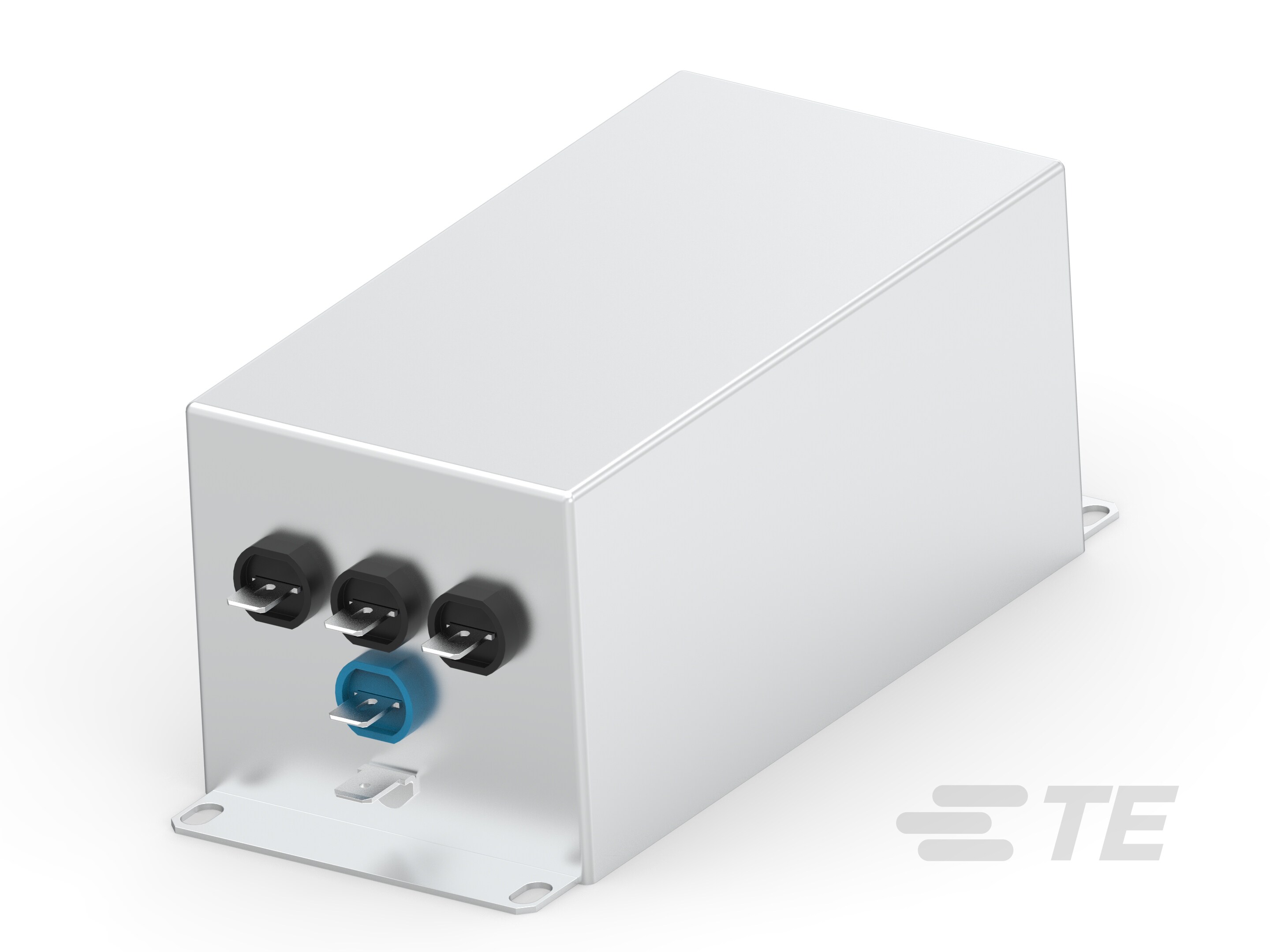

TE Connectivity AMP Connectors FN354-6-05	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	6 A	100 °C	-25 °C	General Purpose	Quick Connect
TE Connectivity AMP Connectors FN354-4-05	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	4 A	100 °C	-25 °C	General Purpose	Quick Connect
TE Connectivity AMP Connectors FN354-12-05	Chassis Mount	250 V	Two Stage	Three Phase (Wye)	60 Hz	440 V	CSA SEMKO	12 A	100 °C	-25 °C	General Purpose	Quick Connect
