737-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 33POS 0.156

Part	Material - Insulation	Termination Rows	Card Type	Color	Number of Rows	Read Out	Contact Type	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Gender	Contact Material	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 737-033-540-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-540-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-522-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-520-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-545-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-525-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm

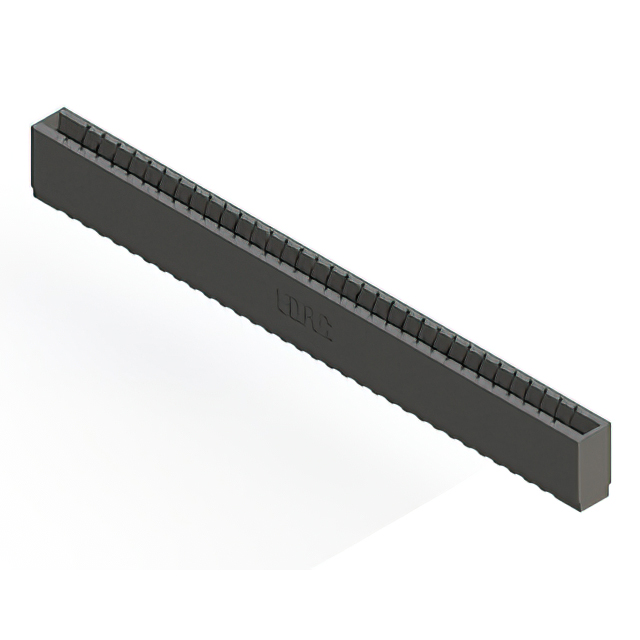

EDAC Inc. 737-033-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-541-106	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-033-522-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Black	1	Single	Cantilever	33	30 Áin	0.76 Ám	Gold	Press-Fit	33	-40 C	105 ░C	Through Hole	Female	Copper Alloy	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm
